TCP-H-800 X 4000 CNC Roll Turning Lathe Machine

Listing ID #7312460

  • MOQ 1 Piece
  • Driven TypeElectric
  • Usage/ApplicationIndustrial
  • Country of OriginIndia
  • Voltage415V
  • Supply Type Exporter, Supplier, Trader
Preferred Buyer From : All over the world
View More Details
Send Enquiry

Company Information

  • Member Since 1 Year
  • Nature of Business Manufacturer
  • GST No. 24AAIFT1112C1ZW

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Driven Type Electric
  • Usage/Application Industrial
  • Country of Origin India
  • Voltage 415V
  • Brand Name TCP
  • Certification CE Certified
  • Type CNC

Optional Equipments :

  • Hydraulic Quill
  • Motorised Tailstock
  • Steady Rest
  • Motorised Turret
  • Chip Conveyor
  • Revolving Centre
  • Tool Shank / Insert
  • Stabilizer


Specifications

MAX. TURNING LENGTH 4000mm
MAX. TURNING DIAMETER 800mm
HEIGHT OF CENTER 635mm
WIDTH OF BED 900mm
GUIDEWAYS 4
BED TYPE One Piece Plano
HEADSTOCK SPINDLE TAPER MT 6
SPINDLE FRONT AXIAL DIAMETER 215mm
CHUCK (MANUAL DOG CHUCK) 750×4 Jaw
CHUCK CLAMPING DIAMETER 150-600mm
MAX. WORKPIECE WEIGHT 8 Ton
TAILSTOCK QUILL DIAMETER 175mm
TAILSTOCK QUILL TRAVEL 3000mm
TAILSTOCK QUILL TAPER MT 6
TAILSTOCK MOVABLE Manual
TAILSTOCK QUILL MOVABLE Manual
SPINDLE SPEED 20-100 RPM
SPINDLE MAIN MOTOR 30 KW Induction
X-AXIS LONGITUDINAL FEED SPEED 2-3000 mm/min
Z-AXIS LONGITUDINAL FEED SPEED 2-3000 mm/min
X-AXIS CROSS RAPID MOVEMENT 4500 mm/min
Z-AXIS LONGITUDINAL RAPID MOVEMENT 4000 mm/min
CONTROLLER SYSTEM Siemens 808D Advance
HEADSTOCK BEARING Taper Roller
X-BALL SCREW DIAMETER 50mm
Z-BALL SCREW DIAMETER 63mm
HEADSTOCK DRIVEN V- Belt Cone Pulley / Geared
TOOLPOST (FIXED TYPE) One Piece Two Position
TOOL HOLDER SIZE 40x40mm
MACHINE WEIGHT 13 Ton
MACHINE PACKING SIZE ( LXWXH) 7800x2300x2100
Interested in this product? Ask for more details & Latest Price from seller
Send Enquiry

Product Images

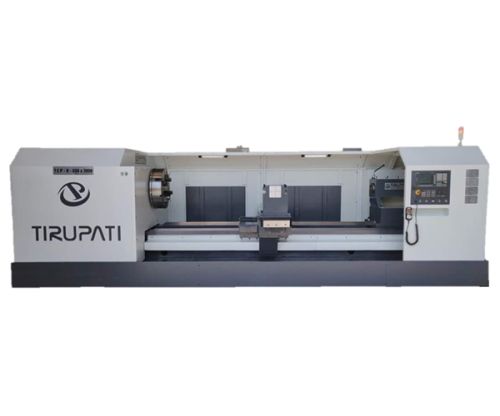

  • TCP-H-800 X 4000 CNC Roll Turning Lathe Machine
  • TCP-H-800 X 4000 CNC Roll Turning Lathe Machine

Company Details close-icon

Tirupati CNC Products, your trusted destination for precision engineering solutions. Since our inception in 1988, we have been at the forefront of manufacturing, exporting, supplying, and trading a wide range of cutting-edge machinery, including CNC Lathe Machines, CNC Slant Bed Turning Machines, VMC Drilling Machines, Conventional Lathe Machines, and CNC Drilling Machines.
Founded by the visionary duo of Mr. Jignesh and Dhawal Bhai Sojitra, Tirupati CNC Products has evolved into a reputed entity known for its commitment to quality, innovation, and customer satisfaction. With our headquarters situated in Rajkot, Gujarat, we have established ourselves as a prominent player in the industry, serving diverse sectors such as automotive, aerospace, medical, and more.
At Tirupati CNC Products, we pride ourselves on our state-of-the-art manufacturing facilities, equipped with advanced machinery and operated by a skilled workforce. Our relentless pursuit of excellence drives us to continually upgrade our technology and processes, ensuring that we deliver products of the highest standards.
What sets us apart is our relentless focus on customer-centricity. We understand the unique requirements of each client and strive to provide tailored solutions that meet their specific needs. Whether it\'s a customized CNC machining solution or a standard machine from our catalog, we aim to exceed expectations in terms of performance, reliability, and efficiency.
Transparency, integrity, and professionalism are the cornerstones of our business ethos. We believe in fostering long-term relationships with our clients, built on trust and mutual respect. Our dedicated team works tirelessly to provide comprehensive support, from pre-sales consultation to after-sales service, ensuring a seamless experience throughout the customer journey.


  • Nature of Business Manufacturer / Exporter / Service Provider / Supplier / Trader
  • Number of Employees 50 - 100
  • Year of Establishment 1988
