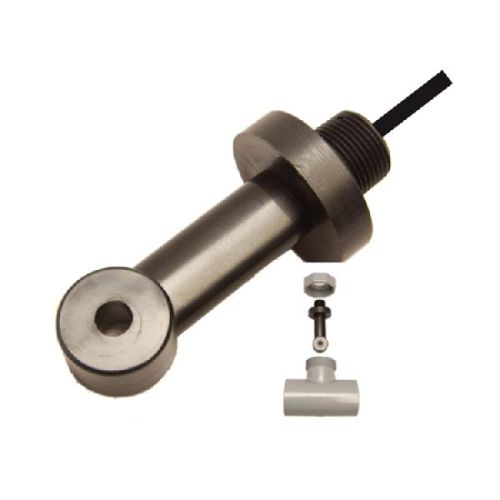

Noryl TCS3000 Series Toroidal Conductivity Sensors

Tcs3000 and 3020 series toroidal conductivity sensors
item no.: tcs3000, tcs3020, fc95c
resists coating, corrosion and fouling
durable noryl construction
easy installation
custom tee for in-line mounting
connects to sensorex tcsma, tcstx, rosemount or foxboro instrumentation
the sensorex tcs series toroidal inductive conductivity sensors features a wide measurement range and dependable toroidal technology over the range 0-2000. Resistant to corrosion, coatings and fouling common to contacting conductivity sensors, the tcs series is designed for a trouble free and long service life.
Noryl is the standard material of construction and has a wide solvent tolerance and temperature stability to 105 degrees c. Optional peek models will be available in the future. All models can be submersed by utilizing the 34” mnpt threads on the sensor or installed in 2” npt tees for in-line deployment. Atc element is user specified and built into the tcs sensor. All tcs sensor models are suppplied with 20ft long 9-conductor cable. Custom lengths are available. Please contact sensorex for pricing.
choose the tcs3020 for use with a sensorex tcsma or tcstx toroidal transmitter. Tcs3000 sensors can be connected to many toroidal controllers and transmitter manufactured by rosemount, foxboro or others.
Specifications
measuring range: tcs3020 and tcs3000 - 0-2,000,000 uscm
body material: noryl (optional peek will be available in the future)
max temperature: 105 degrees c
max pressure: 150 psig
temp comp: user specified temperature elements or -p1k for tcsma and tcstx transmittters.
Cable length: 20 feet, 6 conductor plus shields
process connection: 34" mnpt for submersion, 2" standard tee with a1001a1002 adapter
