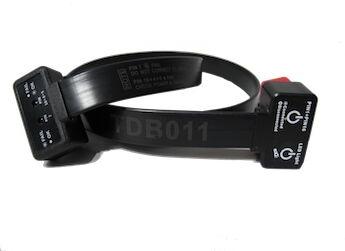

TDB011 VW Audi Group Ignition Bypass Cable

Tdb011 vw audi seat skoda forced ignition cable
the tdb011 vw, audi, seat and skoda has the ability to force the ignition on without an ignition key, the tdb011 also tests the obd socket wiring for power and faults and has a convenient led to help with socket location when light is low or at night.
Plug the tdb011 into the obd, check the lights on the device to ensure the wiring is all correct and the obd port has power and ground connections.
Once the wiring has been checked, the tdb011 makes it possible to force the ignition on (terminal 15) on vw, audi, seat and skoda vehicles from the obd diagnostic port.
This will allow you to wake up the control unit on the vehicle and establish communication without a key.
It is fitted with an obd male port at one end and a female port at the other, and enables you to continue to use the diagnostics without having to
unplug the unit.
Models covered
• vw touran 1t
• vw golf 1k
• vw golf 5m
• vw eos 1f
• vw passat 3b
• vw touareg 7l
• vw passat 3c
• vw tiguan 5n
• vw polo 9n
• vw jetta 1k
• vw caddy 2k
• vw lt35 2d
• vw transporter 7h
• vw scirroco 13
• vw beetle 1y
• vw sharan 7m
• vw fox 5z
• vw polo 6r
• audi a3 8p
• audi a4 8e
• audi a6 4f
• audi q5 8r
• audi q7 4l
• audi tt 8j
• audi a8 8k
• bentley 3w
• porsche 9p
• skoda fabis 6y
• skoda octavia 1z
• skoda roomster 5j
• seat ibiza 6l
• seat alhambra 7n
• seat altea 5p
• seat leon 1p
specification
length : 100 cm
internal battery : rechargeable
connections : male and female obdii
switch : touch sensitive ignition operation
switch : touch sensitive led torch
