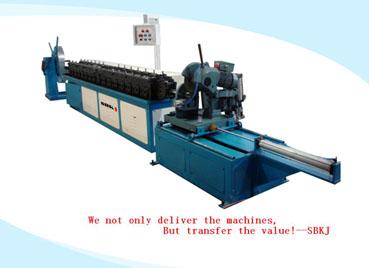

Tdc Flange Forming Machine

We are offering tdc flange forming machine.
tdc unit is one of the two universal flange making systems in the world. It can save time and material drastically with its wel-seal, strong and durable joint structure. So it is specially suitable for producing a duct with a large sectional area. Today many famous buildings in the world utilize this kind of structure in the ventilation system such as the american kennedy space center, guangzhou citic plaza etc. The unit consists of a feeding frame, main forming machine and a shearing unit, which includes grinder and hydraulic shearing unit. The hydraulic shearing unit makes fixed cutting available with very little burr, and may be operated automatically with a maximum work speed of 6 m/min. It is divided into four types: t-20、t-30、t-35、t-40 with their corresponding duct corner t-20dc、t-30dc and t-40dc.tdc made by sbkj may match and produce all the ducts in the dw144 standard, and has passed the hvac pw/tmi(1987) pressure test, which is a speciality test for the intensity and sealed condition of a duct.
type edge wide capacity motor weight dimension
sbtdc-20a 88mm 0.8mm 3kw 2000kg 2800*600*1150mm
sbtdc-30a 120mm 1.0mm 3kw 2200kg 3000*600*1150mm
sbtdc-35a 131mm 1.0mm 3kw 3000kg 3200*600*1200mm
sbtdc-40a 141mm 1.2mm 4kw 3000kg 3200*600*1200mm
type edge wide capacity motor weight dimension
sbtdc-20b 86.5mm 0.8mm 3kw 2000kg 2800*600*1150mm
sbtdc-30b 118mm 1.0mm 3kw 2200kg 3000*600*1150mm
sbtdc-40b 176mm 1.2mm 4kw 3000kg 3200*600*1200mm
