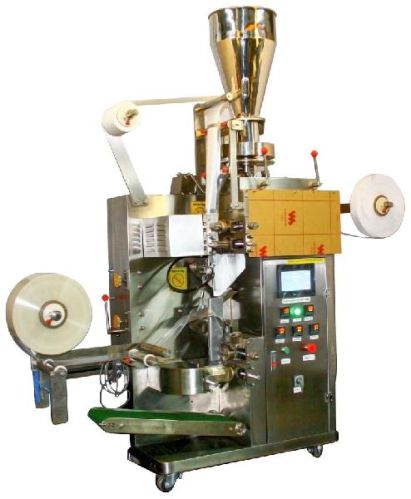

Stainless Steel AISI 304 Tea Bag Packing Machine

FFS0520 - YD18 model machine is used to pack tea, coffee herbal medicine etc. in heat seal filter paper tea bags with string and tag, and pack the finished individual tea bag in a plastic laminated sachet to retain the freshness for long time.

The machine will put the material into inner bag first, and put the inner bag into the outer bag to finish the inner and outer bag packing on the machine. The sealing type of the inner and outer bag is three sides. The machine has the function of a dual orientation device which will align the tea bag and the tag inside the outer packet so that each packet comes out with the tea bag displaying the tag.

Outstanding Features

• Full stainless steel aisi 304 body cladding in 1.6 mm thickness
• Volumetric cup dozer executed in stainless steel aisi 304
• Stainless steel (aisi304) feed hopper
• Stainless steel forming collar
• Digital temperature controllers “Selec" or similar
• Motor 0.37 Kw single phase 220V 50 Hz AC or similar
• Gear Box
• Special attachments for inserting string into the vertical seal
• Special attachments for attaching tag with heat seal, onto the loose end of string
• Special assembly with pneumatic control, for inserting the ready tea bags into the machine formed envelope sachets, with orientation device
• Out-feed conveyor for the tea bags to be picked up for further packaging into boxes.
• All features customizable via Touchscreen PLC

Technical Speciflcation

• Computation Scope - Volumetric method. up to 5 grams
• Mesh Size of Tea Acceptable - 30 to 80 mesh
• Grade of Tea Leaves Acceptable - Dust, Brokens and Fannings.
• Method of Packing - Heat Sealing
• Sealing Orientation - Inner Bag & Outer Bag - 3 side sealing
• Inner Bag  - 30 - 72.5 (w) x 50-70 (L)mm
• Outer Bag - 72.5 - 90 (W) x 60-100 (L) mm
• String Length - 155 mm
• Tag Dimension - 23-30 L mm / 23-30 W mm
• Speed - 30 - 55 Bags /Min
• Power Supply - 220 V/ 3 KW
• Total Weight - 500 KGS
• Dimension - 1400 x 1200 x 1800 mm
