Tea Bag Packing Machine

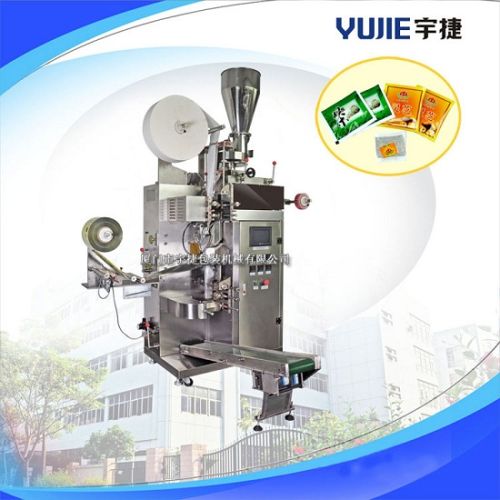

We are offering tea bag inner and outer bag packing machine yd-18ii
1. Automatic tea inner and outer bags packing machine
2. Stainless steel making
3.ce and iso confirmation
4. Easy installation, operation and maintenance
5.the machine is stable
alt
i. Applications
the machine is suitable for the dual bag packing of small grain-like materials, such as tea leafs, medicinal tea and healthy teas.
Ii. Features
1. Automatic tea-bag packing machine with thread,tag and envelope is a hot-sealed, automatic and multifunction packing equipment.
2. The main characteristic of this equipment is it can molding in one time to protect the material from the direct contact with workers' hands and improve the efficiency.
3. The inner bag is filter paper, tagging with thread and label automatically.
4. The outer bag is composite paper (including various kinds of composite membrane hot sealable such as paperplastic, plasticplastic, plasticaluminumplastic, paperaluminumplastic.)
5. The most advantage is, the capacity, the inner bag and outer bag can be adjuster flexibly, and the size of the inner and outer bag also can be adjuster according to the requirement of the customer to get the perfect effect.
Iii. Technical data
1. Features the inner bag with thread and tag automatically
2. Filling range 3-15(ml)
3. Capacity 30-40(bagmin)
4. Inner bag size w 50-80(mm) l 50-70(mm)
5. Outer bag size w 70-90(mm) l 80-120(mm)
6. Tag size w 25mm l 18-22mm
7. Thread length 155mm
8. Total power 220v50hz 3.5kw
9. Dimension(l*w*h) 900*610*1800(mm)
10. Weight 500kg
