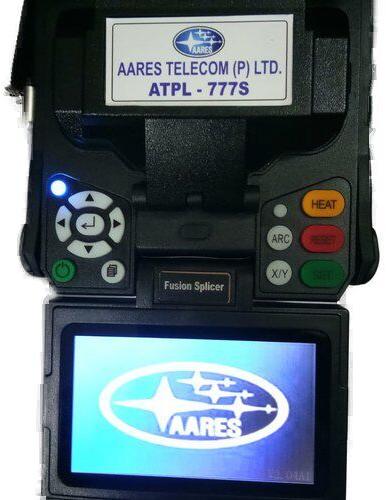

ATPL 777S SPLICING MACHINE (AARES MAKE )

Applicable Fibers SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655) Diameter of cladding 80 -150μm Diameter of coating 160-900μm Typical splice loss SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB Return loss ＞ 60dB Fibe cleaved length 10-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um) Splicing program 40 groups Operate mode Automatic/Manual Auto-heating Available Typical splicing time 7 seconds Typical heating time 18 seconds Fiber magnification 250X (X or Y view), 125X (X and Y view) Display screen 4.3 inch color LCD monitor 2 CMOS camers Records storage 4000 results Loss evaluation Available Tension test 1.8-2.2N Weight 2.0kg (including battery) Battery 5200mAh Li-battery, typical 250 cycles (splicing and heating) Power supply Adapter, input: AC 100-240V(50/50HZ), output: DC 11-13.5V Electrodes life More than 4000 ARC discharges, can be replaced conveniently Ternimal USB2.0 port, for software upgrading and records exporting Operating conditions Altituede: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃, Wind speed: Max 15m/s Dimension 157mm(L) * 136mm(W) * 138mm(H) (including rubber armor)
