The Quick-SC FAST connector is designed for simple and fast field termination of single fibers, without polishing or adhesives. The heart of the Quick-SC fast connector is a pre-polished ferrule and a mechanical splice inside the connector body. Assembly of the Quick-SC requires only normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. No electrical power supply is needed to assemble the Quick-SC quickly fiber connector.
Quick-SC and Quick-LC assembly fiber optic connector uses 3c-link ’s guide rail technology to help position the fibre into the connector, achieving a positive connection in the mechanical splice and low insertion loss termination.
Quick-SC field assembly connectors are available for FTTH Drop Cable . The single-mode versions are available withAPC ferrules.
Operation Setp : ( Please contact 3c-Link Technology for more detail )
Main Features:
* Compatible with conventional SC connector.
* Easy and fast assembly (within 2 minutes) without special tool
* Reliable assembly with Assembly Jig and Fiber Holder appended to connector kit

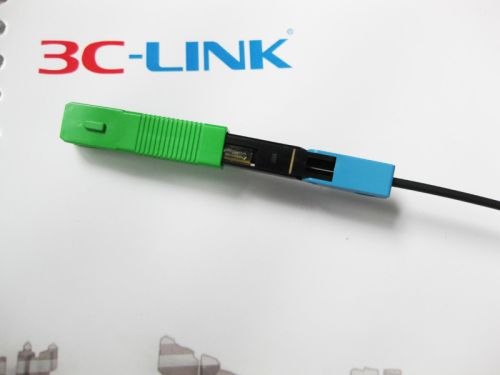

SC/APC FAST CONNECTOR.
ITEM
Technical Parameters
Applicable for
FTTH Drop Cable
Optical fiber diameter
3.0*2.0mm
Tight buffer diameter (μm)
900μm
Fiber mode
Single & multi mode
Operation time
About 200s(no fiber cut)
Insert loss
≤ 0.3dB(1310nm & 1550nm)
Return loss
≤ -60dB
Fastening strength of naked fiber
>5 N
Fastening strength of naked fiber holder
>10 N
Tensile strength
>50 N
Using temperature
-40~+75°C
On-line tensile strength (20 N)
IL ≤ 0.2dB RL ≤ 5dB
Mechanical durability (500 times)
IL ≤ 0.2dB RL ≤ 5dB
Drop-off test (drop-off height 4m,
once per direction, totally 3 times)
IL ≤ 0.2dB RL ≤ 5dB
