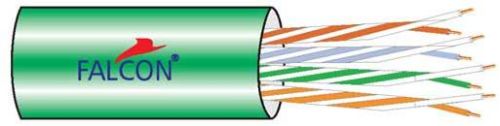

Telephone Cables

We are engaged in providing superior quality Telephone Cables to the buyers. The Telephone Cables are made from annealed electrolytic Tinned copper and the insulation is done from high grade PVC compound. In order to minimize the cross talk, the Telephone Cables are twisted and bunched together. Eventually wrapped with premium polyester tape, smooth peeling is ensured with the help of a nylon rip cord. Sheathing is done with FR/PVC. Our Telephone Cables conform to ITD specifications S/WS 113C. Applications

• Suitable for internal telephone wiring in multi storey complexes, residential buildings, offices, hotels etc.
• Switchboard and telephones exchanges
• Connection of computers and media-technical units.
• Connection of wireless instruments and technical units
• Outdoor use and broadcasting
• For fixed installations across long distances offices, studios, commercial complexes, residence/societies

Product Advantages

• Safe data transfer due to the short pitch and the high quality insulation.
• Long life expectancy due to the special jacket mixture
• Outdoor use and broadcasting
• For fixed installations across long distances (offices, Studios, Commercial Complexes, residential societies)
• Mainly installs for the Land Lines or connect through the intercoms/EPABX systems.
• Used in for Telephone instruments, handset/base unit

Technical Specifications

Conductor Diameter	0.4mm Tinned Copper	0.5mm Tinned Copper
Insulation Material	PVC/HDPE	PVC/HDPE
Rip Cord	Nylon	Nylon
Jacket	FR/PVC	FR/PVC
Max. Conductor Resistance	143.00 ohm/km at 20c	92.20 ohm/km at 20c
Mutual Capacitance	Max. 50 nf/Km	Max. 50 nf/Km
Insulation Resistance in Air	10000M-ohm/Km	10000M-ohm/Km
