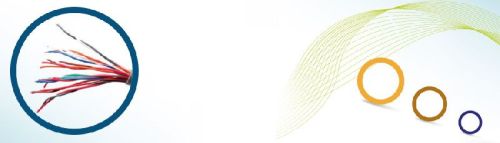

Telephone cables is a pair of copper wires runs from a box at the road to a box (often called an entrance bridge) at your house. From there, the pair of wires is connected to each phone jack in your house.
Along the road runs a thick cable packed with 100 or more copper pairs. Depending on where you are located, this thick cable will run directly to the phone company's switch in your area or it will run to a box about the size of a refrigerator that acts as a digital concentrator. All sizes of telephone cables are available from 2 pairs to 60 pairs.
JASOD611 AVSSSHILPI twisted paired cables are best suited for telephone and switchboard cabling applications. the conductor is made of solid annealed, high conductivity bare copper. The conductor is insulated with special grade high-density polyethylene with different colours. The insulated cores are twisted with uniform lay to form pairs and are bunched together in such a manner so as to minimise cross talk. In 50 and 100 pair cables the units of 10 and 20 pairs respectively are identified with colour binders and stranded to form the laid up cable. The laid up cable is further jacketed with a grey colour fire retardant (FR) PVC specially formulated and manufactured in-house, with high oxygen and temperature index. The cables can be used for switchboard and internal telephone wiring in high-rise buildings, offices, factories, hotels, residential complexes, etc. They generally conform to ITD specifications G/ WIR-06/02. May 94. Stringent quality control at every stage, from raw material through manufacturing, upto the finished product, guarantees high quality.
Salient Features : » LowAttenuation » LowCrosstalk » FireRetardant Jacket
| Construction Parameters | 1 Pair | 2 Pairs | 3 Pairs | 4 Pairs | 5 Pairs | 10 Pairs | 20 Pairs | 25 Pairs | 50 Pairs | 100 Pairs | |
| Conductor (Solid annealed bare copper) | 0.4 mm diameter (nom.) & 0.5 mm diameter (nom.) | ||||||||||
| Insulation Material (0.4 & 0.5 mm dia.) | High density polyethylene | ||||||||||
| Insulation Thickness (Average) | 0.4 mm dia. | 0.17 mm | |||||||||
| 0.5 mm dia. | 0.20 mm | ||||||||||
| Diameter of Insulated Conductor (Maximum) | 0.4 mm dia. | 0.74 mm | |||||||||
| 0.5 mm dia. | 0.92 mm | ||||||||||
| Rip cord (0.4 & 0.5 mm dia.) | Nylon | ||||||||||
| Colour Combination | For 0.4 mm dia & 0.5 mm dia. | ||||||||||
| Pair 01 | White-Blue | White-Blue | White-Blue | White-Blue | White-Blue | White-Blue | White-Blue | White-Blue | White-Blue | White-Blue | |
| Pair 02 | – | White-Orange | White-Orange | White-Orange | White-Orange | White-Orange | White-Orange | White-Orange | White-Orange | White-Orange | |
| Pair 03 | – | – | White-Green | White-Green | White-Green | White-Green | White-Green | White-Green | White-Green | White-Green | |
| Pair 04 | – | – | – | White-Brown | White-Brown | White-Brown | White-Brown | White-Brown | White-Brown | White-Brown | |
| Pair 05 | – | – | – | – | White-Grey | White-Grey | White-Grey | White-Grey | White-Grey | White-Grey | |
| Pair 06 | – | – | – | – | – | Red-Blue | Red-Blue | Red-Blue | Red-Blue | Red-Blue | |
| Pair 07 | – | – | – | – | – | Red-Orange | Red-Orange | Red-Orange | Red-Orange | Red-Orange | |
| Pair 08 | – | – | – | – | – | Red-Green | Red-Green | Red-Green | Red-Green | Red-Green | |
| Pair 09 | – | – | – | – | – | Red-Brown | Red-Brown | Red-Brown | Red-Brown | Red-Brown | |
| Pair 10 | – | – | – | – | – | Red-Grey | Red-Grey | Red-Grey | Red-Grey | Red-Grey | |
| Pair 11 | – | – | – | – | – | – | Black-Blue | Black-Blue | – | Black-Blue | |
| Pair 12 | – | – | – | – | – | – | Black-Orange | Black-Orange | – | Black-Orange | |
| Pair 13 | – | – | – | – | – | – | Black-Green | Black-Green | – | Black-Green | |
| Pair 14 | – | – | – | – | – | – | Black-Brown | Black-Brown | – | Black-Brown | |
| Pair 15 | – | – | – | – | – | – | Black-Grey | Black-Grey | – | Black-Grey | |
| Pair 16 | – | – | – | – | – | – | Yellow-Blue | Yellow-Blue | – | Yellow-Blue | |
| Pair 17 | – | – | – | – | – | – | Yellow-Orange | Yellow-Orange | – | Yellow-Orange | |
| Pair 18 | – | – | – | – | – | – | Yellow-Green | Yellow-Green | – | Yellow-Green | |
| Pair 19 | – | – | – | – | – | – | Yellow-Brown | Yellow-Brown | – | Yellow-Brown | |
| Pair 20 | – | – | – | – | – | – | Yellow-Grey | Yellow-Grey | – | Yellow-Grey | |
| Pair 21 | – | – | – | – | – | – | – | Violet-Blue | – | ||
| Pair 22 | – | – | – | – | – | – | – | Violet-Orange | – | ||
| Pair 23 | – | – | – | – | – | – | – | Violet-Green | – | ||
| Pair 24 | – | – | – | – | – | – | – | Violet-Brown | – | ||
| Pair 25 | – | – | – | – | – | – | – | Violet-Grey | – | ||
| No. of Units | 1 x 1 P | 1 x 2 P | 1 x 3 P | 1 x 4 P | 1 x 5 P | 1 x 10 P | 1 x 20 P | 1 x 25 P | 5 x 10 P | 5 x 20 P | |
| Colour of Unit Identification Binder | For 0.4 mm dia & 0.5 mm dia. | ||||||||||
| Unit 1 | Unit 1 | – | – | – | – | – | – | Blue | Blue | ||
| Unit 2 | Unit 2 | – | – | – | – | – | – | Orange | Orange | ||
| Unit 3 | Unit 3 | – | – | – | – | – | – | Green | Green | ||
| Unit 4 | Unit 4 | – | – | – | – | – | – | Brown | Brown | ||
| Unit 5 | Unit 5 | – | – | – | – | – | – | Grey | Grey | ||
| PVC Jacket (0.4 mm dia & 0.5 mm dia.) | FRPVC compound with high oxygen index | ||||||||||
| Approx. Outer Diameter | 0.4 mm | 2.40 | 3.10 | 3.50 | 3.90 | 4.30 | 6.20 | 8.40 | 9.30 | 12.30 | 16.80 |
| 0.5 mm | 3.10 | 3.90 | 4.20 | 5.10 | 5.60 | 8.20 | 10.50 | 10.70 | 15.20 | 20.40 | |
| Packing Length (mtrs) 0.4 mm dia & 0.5 mm dia. | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 500 | 500 | 500 | |
| Electrical Parameters | 0.4 mm dia | 0.5 mm dia |
| Conductor Resistance (max.) ohms/km at 200C | 143.0 | 92.20 |
| Mutual Capacitance (max.) nf/km | 50 | 50 |
| Insulation Resistance in Air (min.) M-ohms/km | 10,000 | 10,000 |
| Capacitance Unbalance Pair to Pair (max.) pF/km | 250 | 250 |
