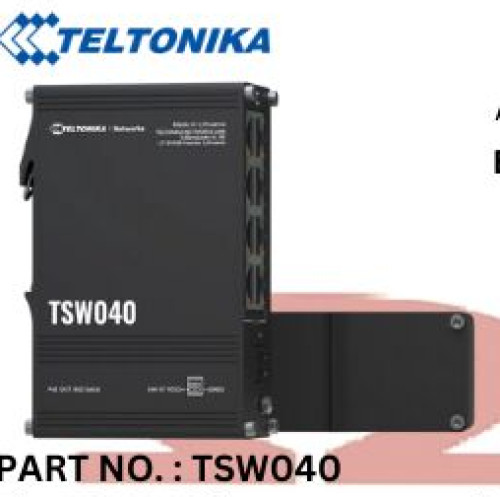

Teltonika - TSW040 (8-PORT Poe+ Ethernet Switch)

Ethernet

• Ethernet

  8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover

• IEEE 802.3 series standards

  802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

POE OUT

• PoE ports

  Port 1 - 8

• PoE standards

  802.3af and 802.3at compliant PSE ports, over spare pairs - Mode B

• PoE Max Power per Port (at PSE)

  30 W

• Total PoE Power Budget (at PSE)

  240 W

Performance Specifications

• Bandwidth (Non-blocking)

  20 Gbps

• Packer buffer

  128 KB

• MAC address table size

  2K entries

• Jumbo frame support

  9216 bytes

Power

• Connector

  2-pin industrial DC power socket

• Input voltage range

  7 – 57 VDC, overvoltage protection: 60Vmax, reverse polarity protection: 80Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current, 1- Vin, 2-PGND

• PoE-out input voltage range

  44 – 57 VDC

• Power consumption

  Idle: 1 W / Max: 2 W / PoE Max: 246 W

Physical Interfaces

• Ethernet

  8 x RJ45 ports, 10/100 Mbps

• Status LEDs

  1 x Power LED, 16 x ETH status LEDs

• Power

  1 x 2-pin industrial DC power socket

• Other

  1 x Grounding screw

Physical Specification

• Casing material

  Anodized aluminum housing and panels

• Dimensions (W x H x D)

  113.1 x 41.2 x 74.6 mm

• Mounting options

  Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)

• Weight

  280 g

Operating Environment

• Operating temperature

  -40 °C to 75 °C

• Operating humidity

  5% to 95% non-condensing

• Ingress Protection Rating

  IP30
