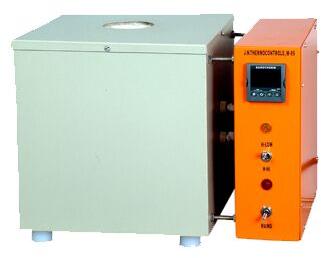

These rugged temperature calibrator, essentially comprises of a metal block, electrically heated and precisionely controlled, using microprocessor based PID controller. Optionally An additional digital temperature indicator & sensor duly calibrated & having traceable calibration certificate can also be provided for use as external reference for comparison purpose.
Control stability is typically ±1Ë�C and is directly readable from display eliminating any guess work. However the calibration accuracy is only limited by the accuracy of the standard / reference sensor or thermometer used .
Â
Â
Features :
- Temperature range up to 1000�C
- Fast, stable, accurate & maintenance free
- High Immersion length enables calibration of analogue dial type thermometers
- Auto tuned PID controller with 5 recipe memory
- Heater high / low position selectors switch enables the use on low temperatures also
| Temperature range | 200ËšC to 1100ËšC |
| Type | Electrically heated Dry Block |
| Resolution | 1ËšC or better |
| Stability | ± 0.5ËšC for 10 min |
| Control Philosophy | auto tuned PID controller |
| Reference Temperature Comparison | 6 MM dia hole for controller (Reference sensor & indicator optional |
| Immersion Depth | 175 MM |
| Heating Time to Max. | Aprox. 90 min . max |
| Stabilizing time | Aprox. 45 min |
| Heating Element | Kenthal |
| Power Supply | 220 V AC ± 10% 1.2 KW |
| Housing | M S Powder coated |
| Mounting | Table top |
| Dimension | H 11" X W 10" X L 15" |
| Weight | 8 kg aprox. |
| Accessory Provided | Metal block 60 MM OD 150 MM long having block holes as Follows 2 x 4 MM OD, 2 x 6 MM OD, 2 x 8 MM OD, 2 x 10 MM OD Block hole depth 100MM |
| Optional Accessories | Inconel metal block Reference Digital Temperature Indicator and sensor |
