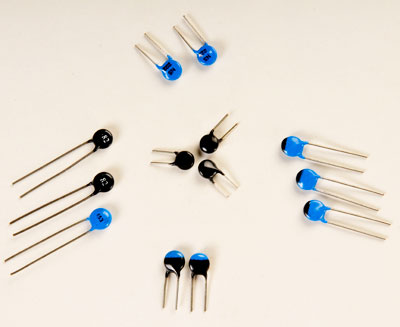

Temperature Compensation NTC Thermistor

ConditionGood
ApplicationTemperature compensation in Electronic circuits
Diameter4mm, 5 mm, 6mm
B Constant deviation+/- 5%
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

ApplicationTemperature compensation in Electronic circuits
ConditionGood
Resistance Tolerance+/- 10%
Min. Order QuantityAs Per Client Requirement
B Constant deviation+/- 5%
Diameter4mm, 5 mm, 6mm
Operating Temp Range-30oC to 160oC
Maximum power rating0.65 W
MaterialLeaded with electroplated Tinned Cu wire and epoxy powder coated.

We manufacture Temperature Compensation NTC Thermistor using high grade materials to impart superior functionality. Our Temperature Compensation NTC Thermistor has managed to gain accolades from clients all over the world as it is a dependable compensation component that stands the test of time.
Specifications :

Diameter : 4mm, 5 mm, 6mm
Leaded with electroplated Tinned Cu wire and epoxy powder coated
Standard ratings :
- Operating Temp range : -30^oC to 160^oC
- Maximum power rating : 0.65 W
- Resistance Tolerance : +/- 10%
- B Constant deviation : +/- 5%

Used For :

Temperature compensation in Electronic circuits

Drawing

Type No.	Nominal Resistance at 25^oC (Ω)	Beta Value (^oK)	Maximum permissible current(mA)
NTS 05 101	100	3000	200
NTS 05 251	250	3250	150
NTS 05 351	350	3450	125
NTS 05 501	500	3650	100
NTS 05 102	1000	3900	80
NTS 05 152	1500	3950	60
NTS 05 202	2000	3950	60
NTS 05 252	2500	4000	60
NTS 05 30	3000	4000	50
NTS 05 402	4000	4000	45
NTS 05 502	5000	4100	45
NTS 05 103	10000	4150	30
NTS 05 153	15000	4200	25
NTS 05 203	20000	4250	25
NTS 05 503	50000	4300	20
NTS 05 104	100000	4300	15
NTS 05 154	150000	4400	10
NTS 05 474	470000	4500	5
NTS 05 684	680000	4550	5
NTS 05 105	1M	4700	5
