Temperature controller, Control Type : PID On/ Off

We are offering temperature controller.
　ly-c series intelligent temperature controller adopt expert microprocessor, it is a kind of multifunction temp.controller.it adopts 100-240vac wide range input switch power supply and smt, with multiple input signal, control output mode and alarm mode. artificial intelligence and expert pid control function,pid self adjustment function and self-diagnose function. The operator can attain the favorable effect.
specifications：
input signal(general input,sotware setting):
tc: k、j、r、s、b、e、n、t、
rtd: pt100、cu50、
voltage signal:dc0-50mv、dc0-5v、dc1-5v
current signal:dc0-20ma、dc4-20ma
resistance signal: 0-400ω
measure precision: ±0.5%fs
main control output mode
main contact,ssr
scr cross zero trigger,ser shit phase
standard voltage signal(0.5v、1-5v)
standard current signal(0-20ma、4-20ma)
alarm output:11 kinds of alarm mode(choose dle function,software setting)
input power supply: ac100v-240v 50/60hz
outline size(high ×width × length)

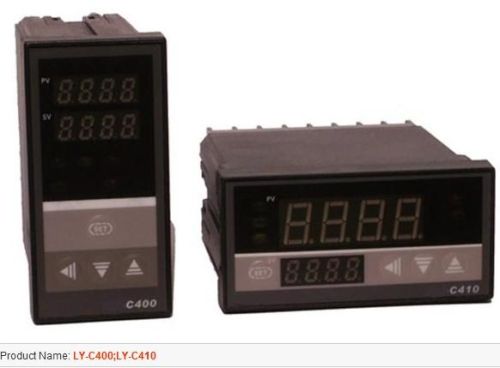

c100　　48×48×110　　　　c400　　96×48×110
c410　　48×96×110　　　　c700　　72×72×110
c900　　96×96×110　　　　c800　　80×160×95
c810　　150×80×95
