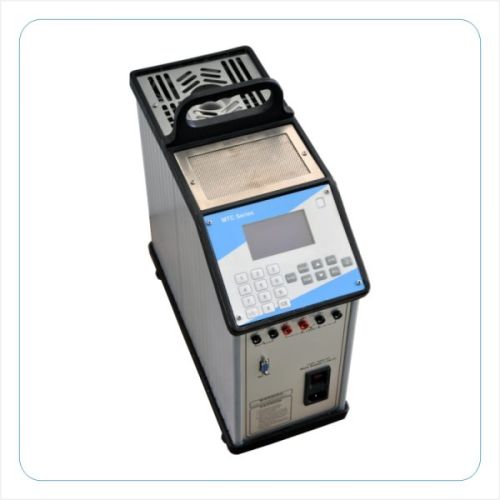

Temperature Dry Block Calibrator

Get Latest Price

Accuracy±0.2°C
Power Supply110V AC to 240V AC, 50 to 60 Hz
Immersion Depth150 mm
Switch Test facilityProvided
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Nagman Instruments

National Highway, Chennai, Tamil Nadu

View Number

Member Since 21 Years
Nature of Business Retailer
Year of Establishment 1972

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Accuracy±0.2°C
Axial Uniformity (40 mm)±0.2°C
Interchangeable ThermowellsMultihole to suit 2 x ¼” & 1 x ½” Probes. Other Sizes available as optional
Range10°C to 120°C
Stabilisation Time7 Minutes
Temperature Readout°C / °F Switcheable
Instrument Weight (approx.)9 Kg.
Instrument Dimensions (L x D x H)160 x 365 x 450 mm
Radial Uniformity±0.02°C
Immersion Depth150 mm
Heating Time (Amb. to 120°C)10 Minutes approx.
Power Supply110V AC to 240V AC, 50 to 60 Hz
Cooling Time (120 to -10°C)25 Minutes approx.
Well Diameter30 mm
Switch Test facilityProvided
Range-10°C to 120°C
Stability±0.02°C
Cooling Time (Amb. to -10°C)15 Minutes approx.
HousingBench-top
Resolution0.01°C

METCAL 40

•   Advanced – Micro-controller based Technology
•   Heavy Duty Portable / Bench-top Model
•   High Accuracy, Resolution, Uniformity & Stability
•   Large Graphic Display (Multi-information Display)
•   Measurement Capability for TC, RTD, mV / mA / V & Resistance Signals
•   Touch Membrane Keypad
•   Switch Test Contact Measurement
•   Multi-hole Thermowell Inserts
•   RS-232 Interface & Calibration Software
•   Count down timer (Shows when unit is stable)
•   Stability Indicator

*Type*	*Range*	*Resolution*	*Accuracy (% of reading)*	*Type*	*Range*	*Resolution*	*Accuracy*
mV (Low)	0 to 100	0.001	±(0.025%+2µV)	TC Type R	150 to 1700	0.1	±(0.025%+0.2°C)
mV (High)	0 to 1000	0.01	±(0.025%+10µV)	TC Type S	170 to 1700	0.1	±(0.025%+0.2°C)
Volts	0 to 10	0.0001	±(0.025%+0.08mV)	TC Type N	0 to 1300	0.1	±(0.025%+0.1°C)
mA	0 to 25	0.0001	±(0.025%+0.4µA)	RTD Pt100	-100 to 800	0.01	±(0.025%+0.1°C)
Ohms	0 to 500	0.001	±(0.025%+12mâ�¦)	RTD Pt200	-100 to 600	0.1	±(0.025%+0.15°C)
KOhms	0 to 3.5	0.00001	±(0.025%+120mâ�¦)	RTD Pt500	-100 to 530	0.1	±(0.025%+0.1°C)
TC Type J	-100 to 1200	0.1	±(0.025%+0.1°C)	RTD Pt1000	-100 to 650	0.01	±(0.025%+0.1°C)
TC Type K	-60 to 1260	0.1	±(0.025%+0.1°C)
