Temperature Gauges

Listing ID #3631675

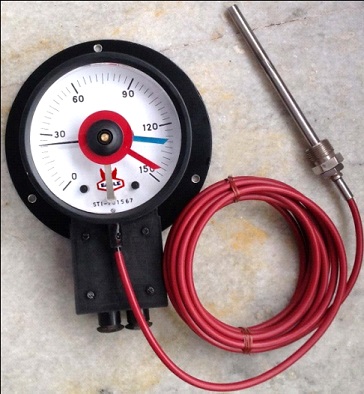

5 Meter SS Capillary with PVC Armor. (With SS-304 Flexible Armor on request)

 Back Flange: Die cast aluminium 210 MM Dia, 7 MM Dia Holes 3 No. with 120 Degree.

Bulb & Stem: SS-316 Bulb Dia: 12 MM, Length: 160 MM.

Connection: SS-316, Adjustable throughout the stem ¾” BSP (M)

Alarm /Trip Glass Contacts, Relay Coil Supply 230 V AC, Contact Rating 230V AC. 3 Amp./5AmP

• Technical Specification For Temperature Gauge:   (Utilization Mainly in Thermal Power Stations)

1. MAKE                  : S T INSTRUMENTS.
2. Casing                 : Die Cast Aluminium/(SS-304 Weather & Moisture Proof on request).
3. Bourdon Tube Material   : SS-316 (Phosphor-Bronze on request).
4. Movement Assembly:   Brass (SS-304 on request).
5. Window                         : Toughened Glass.
6. Pointer                           : External zero adjustable.
7. Dial                                 : Black marking on white base.
8. Accuracy                        : +/- 1% FSD.
9. Connection       : Bottom entry with adjustable union and ferrule throughout the Stem/Capillary.(Or as the specified Drawing)
10. Junction Box     : At the bottom of the casing made of aluminium, with proper gasket. A suitable terminal block has been provided inside the JB to facilitate connection for power supply,  & Alarm and Trip contacts.

•  These Gauges only can be Manufactured on the basis of proper Drawing, & approval  of  SAMPLE
