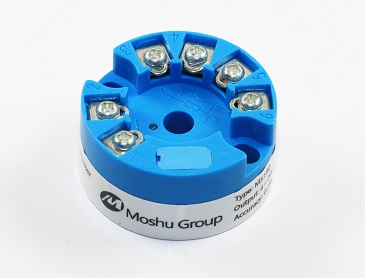

Temperature Head TransmitterModule, Packaging Type : red/blue

Application area
� PC programmable (PCP) Temperature head transmitter
for converting a RTD input signal into a standard
4 to 20 mA analog output signal
� Input: Resistance thermometer
� Online configuration using a PC with MS180
configuration kit (MS180-PC)
Performance
�Universal PC programmable (PCP)
�2 wire technology, 4 to 20 mA analogue output
�High accuracy in total ambient temperature range
�Configuration during measurement using configuration kit
�Customer specific measurement range setting
Primary Technical Characteristics
Programmable Use MS180 programming tool
Measuring range Set via PC
PC Interface USB
Input type RTD
Convert accuracy �0.2�
Output 4�20mA
Max-load �V -10V�/0.025A�output Current�
Limit current �25mA
Response time 1s
Power supply 10~30V DC
Temperature drift 0.01� FS /1�
Long-term stability �0.1� per year or 0.05� per year
Ambient� -40�+85�
