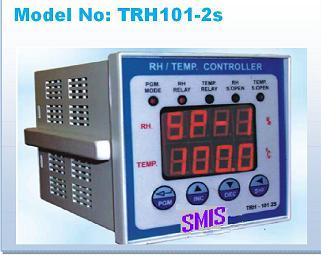

Temperature Humidity Controller

We are offering temperature humidity controller.this micro controller-based instrument is basically a two channel process controller, which accepts two 4~20ma current inputs and display their corresponding process values of rh and
temperature. It has two individual control set points, one for each channel with a variable hysterisis. In the normal mode, the user can set the control set point for both channels and their corresponding hysterisis.
features
1. Bright led display
2. Push button operation
3. User friendly operation
specifications
input : 4~20ma inputs ×2 channels for rh and temperature
set points: individual control set points for rh and temperature
hysterisis: set able from 0~50.0 for both set points
resolution: set able by changing the "d-pt" parameter
range: set able individually from 0000 to 4000 counts
control action: set able for heating / cooling logic.
set point limit : set able from 0000 to range individually
memory: eeprom memory with 100 years memory retention
supply: 230v ac, ± 10%, 50hz.
cutout size: 92mm(w) × 92mm(h)
overall size: 96mm(w) × 96mm(h) × 115mm(d)
