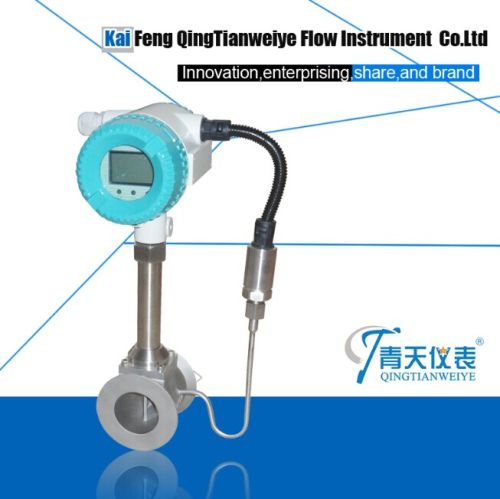

Temperature Pressure Steam Vortex Flow Meter

We are offering temperature pressure steam vortex flow meter,
product description
1. Vortex flowmeter
2. Accuracy: 1% measured value
3. Current output: 4-20ma
4. Protection level: ip65
5. Gas, liquid
products of vortex flow meter, have achieved intellectualization, standardization, serialization, universalization, ensuring standards for quality and elegant appearance.
features such as advanced circuits, low power consumption, wide ratio of measurement range, simple structure, a little resistance loss, durable design, extensive use, long service life, stable system and easy for installation and debugging.
measuring medium liquid, gas, vapor
medium temperature normal temperature: -40° c~+80° c high temperature +280° c maximum temperature +320° c
medium pressure 1.0mpa, 1.6mpa, 2.5mpa^ 32mpa
intrinsic error full tube type: ± 0.5%, ± 1.0%, ± 1.5% plug-in type: ± 2.5%
ratio of measurement range 1: 10 1: 20 1: 30 1: 40
range of flow speed liquid(water): 0.25ms~9.5ms gas: 4ms~78ms vapor: 3ms~78ms
caliber dn (mm) full tube type: 15, 25, (32), 40, 50, (65), 80, 100, (125), 150, 200, 250, 300 plug-in type: 300~3000
reynolds number re> 4000
drag coefficient full tube type: cd less or equals 2.4, plug-in type: drag loss can be omitted
degree of anti-explosion intrinsic safety type: ia ii t2~t5, explosion-proof type: d ii bt4
ambient temperature non anti-explosive area: -40° c~+55° c anti-explosive area: -20° c~+55° c
dc supply +3.6v, +12v, +24v (field data show the supply is +3.6v for 3 to 5 years)
output signal frequency impulse signal: 1~2600hz, low level less or equals 1v, high level over or equals 5v, transmitter: two-wire system 4~20ma.
