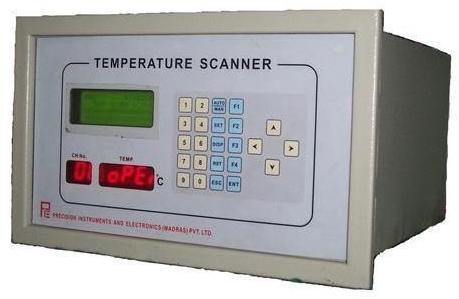

Temperature Scanner

Features High mechanical strength, Long functional life, Easy to carry
Display Either in Auto or Manual,set point indications,various Parameters Indications
Power Supply240V AC,50HZ
Indications Alarm & Trip,open & short Circuit indication
Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location All over the world

Company Information

Ask for more detail from the seller

Report incorrect details

Display Either in Auto or Manual,set point indications,various Parameters Indications
Delay 0-15 Minute,adjustable for Alarm and Trip separately
Power Supply240V AC,50HZ
Display Seven segment LED(Min 0.5"),3 1/2 Digit for Temp & 2 Digit for channel No.
Range Configurable
Accuracy /- 1%
No.of channels to be specified
Features High mechanical strength, Long functional life, Easy to carry
Output Relay 2 Nos,one for alarm & one for trip.,& each Channel can be configured for these relays,it can be configured for no.of input crosses set limit for Alarm/Trip/Rate High/Rate low
Input3 wire RTD/PT100/CU 53/Thermocouple (K/R type)
Contact Rating One change over contact.5A@240V AC/2A @ 24V DC
Indications Alarm & Trip,open & short Circuit indication
Scan Rate Min 6 channel per second
