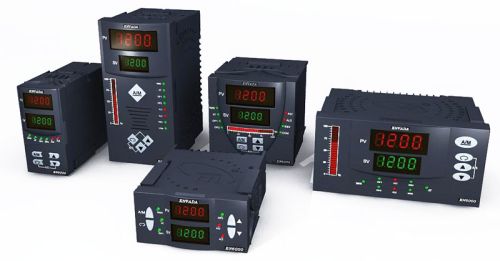

Temperature Scanner

Listing ID #438632

Our company is engaged in manufacturing and supplying Temperature Scanner that is very effective and durable. The Temperature Scanner provided by us is renowned for its accuracy and reliability. We make sure that the specifications of the Temperature Scanner provided by us is equipped with the best possible features and manufactured keeping in mind the needs of our clients. The Temperature Scanner provided by us meets varied uses in the industrial sectors. Accessories (For Models with Independent Alarms) :

• Weather proof Enclosure for DIN Rail Mounted Alarm Output Card with 16 32 Open Collector outputs
• External Relay Box For Scanners with Independent Alarms-weatherproof enclosure housing DIN rail mounted Open collector output card, Power supply & Relay
• • Modules. Power Supply : 230 V AC, 50 Hz
  • Note : Item No. 1 not required
  • • Relay Box with 8 Nos. Alarm Relay 3 Amps250 V AC
    • Relay Box with 16 Nos. Alarm Relay 3 Amps250 V AC
    • Relay Box with 32 Nos. Alarm Relay 3 Amps250 V AC (for 16 Channel Scanner only)
    • Features :
      • Intelligent multi channel data acquisition display
      • 8 16 Channels - Universal Input (TC RTD mA mV V Ω)
      • Every channel is independently programmable for input, range & alarms
      • Input channels are isolated for all inputs except RTD Ω
      • Common Independent Low & High Alarm relays for each channel
      • 24VDC Power supply for 2 wire transmitters - on 3 channels
      • High accuracy (14 bit resolution), μP based
      • Self Diagnosis function - Input fail safe operation
      • Communication (RS485 RS232) MODBUS Printer port
      • EMI ESD protection; CE approved

      • Specifications

        InputThermocoupleS, B, T, R, K, E, J, NRTDPt100, Cu50, Cu100Voltage(-)20 - 20mV DC, (-)100 -100mV DC, 0 -100mV DC, 0 - 500mV0-1VDC, 0-5V DC, 1-5V DC, 0-10V DCCurrent Signals0-10mA, 4-20mA, 0-20mASquare root extraction0-5V DC, 1-5V DC, 0-10mA, 4-20mAResistance Signals0-100 Ω, 30-350 ΩMeasuring Accuracy± 0.2% FS ±1 Digit, typicalResolutionTC: 1^{oC (0.1oC Upto 999.9oC) RTD: 0.1oCDisplayProcess Value
        Type
        Size4 digit, 7 segment LED, Red
        14 mm (0.56”) in 96 x 96 mm; 9 mm (0.35”) in 48 x 96 or 96 x 48Channel No.
        Type
        Size4 digit, 7 segment LED, Green
        9 mm (0.35")Channel Display TimeProgrammable from 1 to 100 secondsOutput (Optional)Linear Retransmission output4-20mA (14bit Resolution), isolated, 0-20mA (option)Accuracy± 0.3% FS, typicalAlarm outputNone Common One Two (High Low) Alarm Relays (built-in) Independent High & Low Alarm Relays per channel (in externalwall mount enclosure);Option: SSR drive Voltage in place of RelayAlarm Relay RatingCommon alarm : 1 Amp 250 VAC, resistive load; 310 A (Optional)
        Independent alarm : 3 Amp 250 VAC, resistive loadTransmitter Power Supply24V DC 30 mA, isolated for 2 wire type; upto 3 nos. (Optional)Communication (Optional)RS485 - ASCII Protocol MODBUS Serial Printer PortSizeBezel (W x H), mm96 x 96 or 48 x 96 or 96 x 48Panel cut out (W x H), mm90.5 x90.5, 44.5 x 90.5 & 90.5 x 44.5 Download}
