110S Temperature Sensor

The 110S Temperature Sensor is a durable and economical integrated circuit temperature sensor that provides a high level voltage output signal.

The 110S is ideally suited for the temperature measurement requirements of remote wind and solar energy studies. Recommended uses of the data from this sensor include calculating energy density calculations; monitoring air temperature; calculating atmospheric stability conditions; identifying icing conditions in cold climates; and estimating PV panel efficiency, which is temperature dependent.

A calibrated version, the 110SC, is available when the lowest uncertainty is the priority. It is suggested for differential temperature measurements, where two temperature sensors are deployed on the same tower.

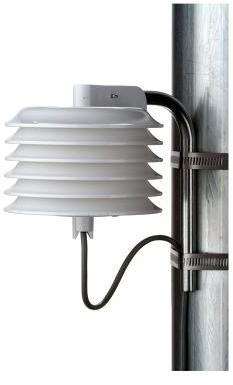

This sensor includes an internal reference, amplifiers, and linearization enclosed in a six-plate UV-stabilized radiation shield. The universal mounting assembly connects quickly to any pipe or tower.

The sensor comes with a potted 5 m, 67 m or 90 m sensor cable. If you require a different cable length, please contact us.

Specifications

110S Temperature Sensor | 5m Cable (#1906)110S Temperature Sensor | 67m Cable (#6610)110S Temperature Sensor | 90m Cable (#9036)110SC Temperature Sensor | 5m Cable (#4429)110SC Temperature Sensor | 67m Cable (#9035)110SC Temperature Sensor | 90m Cable (#9037)DescriptionSensor type Applications Sensor range Instrument compatibility Output signalSignal type Transfer function Accuracy Electrical time constant Output signal range Response characteristicsThermal time constant Power requirementsSupply voltage Supply current InstallationMounting Tools required EnvironmentalOperating temperature range Operating humidity range Lifespan PhysicalConnections Cable length Weight Dimensions MaterialsCable Probe Shield

Integrated circuit temperature sensor with six plate radiation shield	Integrated circuit temperature sensor with six plate radiation shield	Integrated circuit temperature sensor with six plate radiation shield	Integrated circuit temperature sensor with six plate radiation shield	Integrated circuit temperature sensor with six plate radiation shield	Integrated circuit temperature sensor with six plate radiation shield
Wind resource assessment Meteorological studies Environmental monitoring	Wind resource assessment Meteorological studies Environmental monitoring	Wind resource assessment Meteorological studies Environmental monitoring	Wind resource assessment Meteorological studies Environmental monitoring	Wind resource assessment Meteorological studies Environmental monitoring	Wind resource assessment Meteorological studies Environmental monitoring
-40 °C to 52.5 °C (-40 °F to 126.5 °F)	-40 °C to 52.5 °C (-40 °F to 126.5 °F)	-40 °C to 52.5 °C (-40 °F to 126.5 °F)	-40 °C to 52.5 °C (-40 °F to 126.5 °F)	-40 °C to 52.5 °C (-40 °F to 126.5 °F)	-40 °C to 52.5 °C (-40 °F to 126.5 °F)
All RNRG loggers	All RNRG loggers	All RNRG loggers	All RNRG loggers	All RNRG loggers	All RNRG loggers
Linear analog voltage	Linear analog voltage	Linear analog voltage	Linear analog voltage	Linear analog voltage	Linear analog voltage
Temp = (Voltage x 55.55) - 86.38 °C [Temp = (Voltage x 100) - 123.5 °F]	Temp = (Voltage x 55.55) - 86.38 °C [Temp = (Voltage x 100) - 123.5 °F]	Temp = (Voltage x 55.55) - 86.38 °C [Temp = (Voltage x 100) - 123.5 °F]	Temp = (Voltage x 55.55) - 86.38 °C [Temp = (Voltage x 100) - 123.5 °F]	Temp = (Voltage x 55.55) - 86.38 °C [Temp = (Voltage x 100) - 123.5 °F]	Temp = (Voltage x 55.55) - 86.38 °C [Temp = (Voltage x 100) - 123.5 °F]
Uncertainty (k=2): ±1.24°C (±2.23°F)	Uncertainty (k=2): ±1.24°C (±2.23°F)	Uncertainty (k=2): ±1.24°C (±2.23°F)	Uncertainty (k=2): ±0.43°C (±0.77°F)	Uncertainty (k=2): ±0.43°C (±0.77°F)	Uncertainty (k=2): ±0.43°C (±0.77°F)
250 µs	250 µs	250 µs	250 µs	250 µs	250 µs
0 V to 2.5 V DC	0 V to 2.5 V DC	0 V to 2.5 V DC	0 V to 2.5 V DC	0 V to 2.5 V DC	0 V to 2.5 V DC
10 minutes	10 minutes	10 minutes	10 minutes	10 minutes	10 minutes
4 V to 35 V DC	4 V to 35 V DC	4 V to 35 V DC	4 V to 35 V DC	4 V to 35 V DC	4 V to 35 V DC
300 µA max. (no load on output)	300 µA max. (no load on output)	300 µA max. (no load on output)	300 µA max. (no load on output)	300 µA max. (no load on output)	300 µA max. (no load on output)
Attaches to tower with included hose clamps	Attaches to tower with included hose clamps	Attaches to tower with included hose clamps	Attaches to tower with included hose clamps	Attaches to tower with included hose clamps	Attaches to tower with included hose clamps
8mm (5/16 inch) nut driver or flat blade (-) screwdriver (to install hose clamps) Sheet metal shears or similar (for trimming hose clamps)	8mm (5/16 inch) nut driver or flat blade (-) screwdriver (to install hose clamps) Sheet metal shears or similar (for trimming hose clamps)	8mm (5/16 inch) nut driver or flat blade (-) screwdriver (to install hose clamps) Sheet metal shears or similar (for trimming hose clamps)	8mm (5/16 inch) nut driver or flat blade (-) screwdriver (to install hose clamps) Sheet metal shears or similar (for trimming hose clamps)	8mm (5/16 inch) nut driver or flat blade (-) screwdriver (to install hose clamps) Sheet metal shears or similar (for trimming hose clamps)	8mm (5/16 inch) nut driver or flat blade (-) screwdriver (to install hose clamps) Sheet metal shears or similar (for trimming hose clamps)
-40 °C to 52.5 °C (-40 °F to 126.5 °F)	-40 °C to 52.5 °C (-40 °F to 126.5 °F)	-40 °C to 52.5 °C (-40 °F to 126.5 °F)	-40 °C to 52.5 °C (-40 °F to 126.5 °F)	-40 °C to 52.5 °C (-40 °F to 126.5 °F)	-40 °C to 52.5 °C (-40 °F to 126.5 °F)
0 to 100% RH	0 to 100% RH	0 to 100% RH	0 to 100% RH	0 to 100% RH	0 to 100% RH
10 years +	10 years +	10 years +	10 years +	10 years +	10 years +
Wire leads: Signal (clear wire) Ground (black wire) Excitation (red wire) Shield wire for earth ground	Wire leads: Signal (clear wire) Ground (black wire) Excitation (red wire) Shield wire for earth ground	Wire leads: Signal (clear wire) Ground (black wire) Excitation (red wire) Shield wire for earth ground	Wire leads: Signal (clear wire) Ground (black wire) Excitation (red wire) Shield wire for earth ground	Wire leads: Signal (clear wire) Ground (black wire) Excitation (red wire) Shield wire for earth ground	Wire leads: Signal (clear wire) Ground (black wire) Excitation (red wire) Shield wire for earth ground
5 m (16 ft)	67 m (220 ft)	90 m (295 ft)	5 m (16 ft)	67 m (220 ft)	90 m (295 ft)
0.47 kg (1.04 lbs)	2.63 kg (5.80 lbs)	3.4 kg (7.6 lbs)	0.47 kg (1.04 lbs)	2.63 kg (5.80 lbs)	3.4 kg (7.6 lbs)
Sensor only: 30.5 mm (1.2") height x 12.7 mm (0.5") diameter Sensor with radiation shield: 127 mm (5") diameter x 127 mm (5 inches) height	Sensor only: 30.5 mm (1.2") height x 12.7 mm (0.5") diameter Sensor with radiation shield: 127 mm (5") diameter x 127 mm (5 inches) height	Sensor only: 30.5 mm (1.2") height x 12.7 mm (0.5") diameter Sensor with radiation shield: 127 mm (5") diameter x 127 mm (5 inches) height	Sensor only: 30.5 mm (1.2") height x 12.7 mm (0.5") diameter Sensor with radiation shield: 127 mm (5") diameter x 127 mm (5 inches) height	Sensor only: 30.5 mm (1.2") height x 12.7 mm (0.5") diameter Sensor with radiation shield: 127 mm (5") diameter x 127 mm (5 inches) height	Sensor only: 30.5 mm (1.2") height x 12.7 mm (0.5") diameter Sensor with radiation shield: 127 mm (5") diameter x 127 mm (5 inches) height
3 conductor 22 AWG, with overall foil shield and drain wire, chrome PVC jacket	3 conductor 22 AWG, with overall foil shield and drain wire, chrome PVC jacket	3 conductor 22 AWG, with overall foil shield and drain wire, chrome PVC jacket	3 conductor 22 AWG, with overall foil shield and drain wire, chrome PVC jacket	3 conductor 22 AWG, with overall foil shield and drain wire, chrome PVC jacket	3 conductor 22 AWG, with overall foil shield and drain wire, chrome PVC jacket
Aluminum, epoxy filled	Aluminum, epoxy filled	Aluminum, epoxy filled	Aluminum, epoxy filled	Aluminum, epoxy filled	Aluminum, epoxy filled
UV-stabilized thermoplastic solar radiation shield	UV-stabilized thermoplastic solar radiation shield	UV-stabilized thermoplastic solar radiation shield	UV-stabilized thermoplastic solar radiation shield	UV-stabilized thermoplastic solar radiation shield	UV-stabilized thermoplastic solar radiation shield
