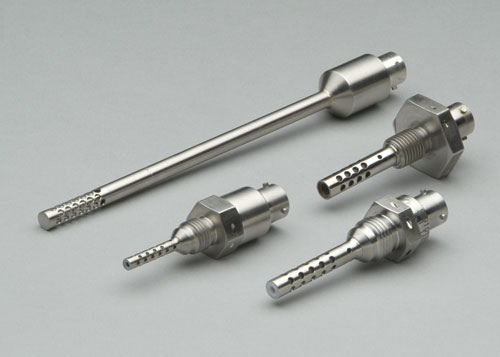

Temperature Sensors

Highly accurate and stable wire wound Platinum Resistance Temperature Detectors (RTD) furnish outstanding range, linearity, and accuracy.
Over 1,000 Qualified Sensor Configurations Available
Existing designs can bemodified to meet your specific requirement. Sensor selection and mounting recommendations are available to ensure optimum performance. Sensors are available with complete calibration and data processing in any temperature increment (calibration is traceable to the National Bureau of Standards). DIN and reference grade curves are available.
Wire round RTDs provide interchangeability and self-heating uniformity characteristics far superior to thin film devices. Precise wire tension control during winding, coupled with subsequent high temperature annealing, results in excellent repeatability and low hysteresis. Also, the resistance vs. temperature relationship is extremely accurate.
Exposed Elements and Surface Sensors
Thin and flexible Kapton surface sensors feature low thermal mass for accurate surface measurement without reference points or compensation circuits. Sensors can be mounted on flat or curved surfaces, or where other sensors are too large, or too rigid. For added convenience, Kapton surface sensors are available with factory applied pressure sensitive adhesive. Surface sensors can be mounted within devices such as multi-layer boards and encapsulated modules.
Thermocouples, available in any ISA conductor combination, feature fast response, point sensing, and high temperature capability in a small package. Easy to use thermocouples provide rugged temperature sensing over a wide operating range, minimize cost, and simplify recording instrumentation interface. Standard and custom accuracies are available with grounded and ungrounded junctions.
Thermistors can be configured as the sensing element in any of our envelopes to monitor the temperature of small areas with high base resistance and a very high signal strength.
