Temperature Transmiter

AccuracyClass 1
Available in Options WithUniversal RTDs
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

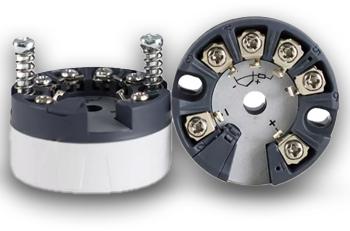

The ASHMTT01 by Alba Sensors is a single-input head-mounted temperature transmitter. Thermocouples and RTDs are accepted on the single input. For transmission to your system, all inputs are linearized and transformed into a 4-20 mA output that meets industrial standards. For your monitoring applications, use ASHMTT01.

View More Details

Send Enquiry

Specification

Input
Input Signal		Resistance temperature detector (RTD), thermocouple (TC)
Code - junction compensation temperature scope		-20∼60℃
Compensation precision		±1℃
Output
Output Signal		4...20mA(two-wire)
Load resistance		RL≤(Ue-12)/0.021
Output current of upper and lower limit overflow alarm		IL=3.8mA IH=21mA
Input Type And Transmission Precision
Type	Measuring Range	Minimum Measurement Range	Conversion Accuracy
Pt100	-200∼850℃	20℃	±0.1% range or ±0.2℃
Cu50	-50∼150℃	20℃	±0.1% range or ±0.2℃
B	400∼1800℃	500℃	±0.1% range or ±1.5℃
E	-100∼1000℃	50℃	±0.1% range or ±0.5℃
J	-100∼1200℃	50℃	±0.1% range or ±0.5℃
K	-180∼1372℃	50℃	±0.1% range or ±0.5℃
N	-180∼1300℃	50℃	±0.1% range or ±0.5℃
R	-50∼1768℃	500℃	±0.1% range or ±1.5℃
S	-50∼1768℃	500℃	±0.1% range or ±1.5℃
T	-200∼400℃	50℃	±0.1% range or ±0.5℃
