Tempered Glass Cutting Machine

We are offering tempered glass cutting machine.
Insulating tempered glass cutting machine with good price performance and characteristic

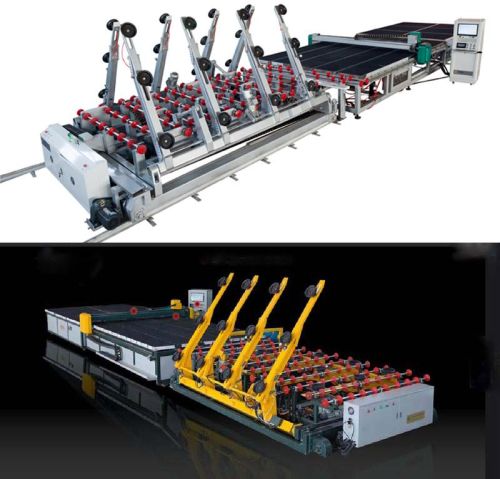

1. Cnc series full-auto insulating tempered glass cutting machine with good price is composed of three related single machines, separately are "glass loading table", " cnc series full-auto cutting machine" and " air cushion glass breaking table" three equipments are centralized controlled by the central control unit to combine a high efficiency and high precision glass cutting product line.
2. insulating tempered glass cutting machine with good price work flow is: after the glass loading machine starts, the suction pads arm will get the glass. Under the control of the sensor, the glass will look for the edge automatically in x and y directions; after it will deliver the glass to nc cutter table after it moves to designated position. Under the guidance of laser sensory element, the mechanical- photoelectricity combined glass will localize and the cutting knife will move to origin of coordinates according to the instruction and start the auto cutting per preset graphic. After the cutting is completed, the glass will be delivered to the glass breaking table via the conveyer; the glass will be broken after the roof bar is started. Thus the overall flow is finished.
insulating tempered glass cutting machine with good price technical parameters:
0.30mm cutting precision: straight line 0.30, curve 0.30mm
max. Dimension of cutting glass: 3650*2750mm
min. Dimension of cutting glass: 1000*1000mm
thickness of cutting glass: 2-19mm
cutting speed: 100m/min
external dimensions of cutting table 4710*3250*930mm
weight of cutting table 1500kg
pressure of air passage system 0.5-0.8mpa
ac supply ac380v 50hz
