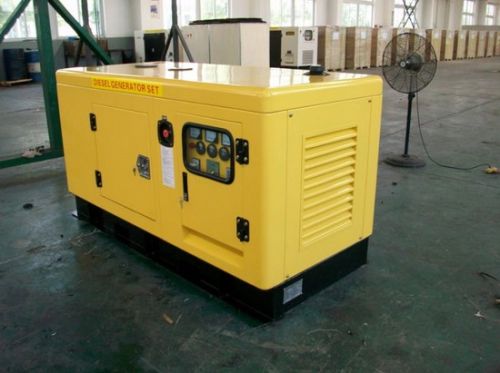

TencoGen 10-200KW FUDON Water-Cooled Diesel Generator Set

Water Cooled Diesel Generator Sets
1)Rated power: 10-200kw
2)Fudon diesel engine
3)Brushless alternator
4)Silent or open
10kw to 200kw Water Cooled Diesel Generator Set
General Technical Data:
1. Engine: brand new FUDON water cooled diesel engine
2. Alternator: brushless alternator
3. Output range: 10-50kw
4. Frequency: 50 & 60Hz
5. Speed: 1500 or 1800rpm
6. Phase: 3 Phase 4 Wire & 1 Phase 2 Wire
7. Voltage: 220/380V, 230/400V, 240/415V, etc
8. Automatic digital control panel, auto start with AMF function
Genset Features:
1. FUDON water cooled diesel engine
2. Radiator 40 C max, fans are driven by belt, with safety guard
3. Brushless alternator
4. Choice of manual/auto and AMF control panels and protection systems
5. Digital auto-start panel
6. Anti Vibration Suspension Absorber
7. Dry type air filter, fuel filter, oil filter
8.10-hour operation base tank
9. Mould case circuit breaker
10.24V DC start motor and storage battery
11.24V charge alternator
12.24V batteries, rack and cable
13. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler
14. All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load, 110% load and all protection function (over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
Engine Features:
1. FUDON water cooled diesel engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Alternator Features:
1. Good quality alternator
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤ ± 1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof
Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6.1m
