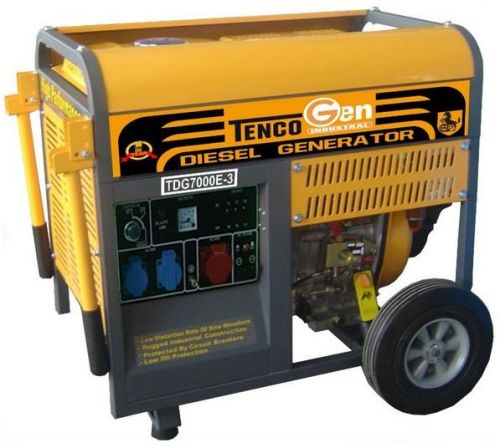

TencoGen 2.0-10.0 KVA Air-Cooled Diesel Generator Set

Diesel Air-cooled Generator Set
-EPA,CE,ISO
-MOQ: 5 sets
-Delivery Time: 25-35 days after receipt of deposit
1)Rated power: 2.0/ 2.8/ 5.0/ 5.5/ 6.0/ 9.0/ 10.0 KVA
2)AVR Regulator
3)Low Oil Pressure Alert System
4)Optional
Panel: European type or American type
Frame: Open or Silent
Accessories: tyre, handle, etc.
Distinguished Feature
1) Top air-cooled 4-stroke engine
2) AVR Regulator to make voltage in a perfect wave form
3) Low oil alert system to protect generator against damage
Specification for 5.0KW (for more information about others and customization, pls contact us)
Generating: TDG7000E
Frequency: 50 HZ 60 HZ
Max. AC output: 5.5KVA 6.0 KVA
Rated AC output: 5.0KVA 5.5KVA
Phase: Single phase
Insulation F
Rated AC voltage: 115/230.220.230.240/110.120.110/220.120/240
Engine
Model: 186F
Engine Type: Air Cooled,4 Stroke, Single Cylinder
Max power output: 10.0HP
Displacement: 420cc
Compressing ratio: 2.0: 1
Engine speed: 3000rpm 3600rpm
Starting system: Recoil /Electric
Fuel tank capacity: 12L
Noise level(at 7m): 70db(A)
N.W/G.W: 96/ 98KG
Packing Dimension: 780X545X660 mm
