Tensioned Polyurethane Screen - Hooks For Easy Clamping

We are offering tensioned polyurethane screen - transverse and longitudinal
similar as the modular polyurethane screen, tensioned polyurethane screen is made of polyurethane materials and embedded with steel frame. Tensioned polyurethane screen has a special designed fastening hooks which can clamp screens into the separator. The hooks can be transverse tensioning and longitudinal tensioning.
Tensioned polyurethane screen is lightweight and easy to install in screening situations where material specifications are frequently changed.
Tensioned polyurethane screen is ideal for all screening applications where screening efficiency and noise reduction is crucial. The various opening sizes ensure the high separating and screening efficiency and the smooth surface and polyurethane materials make the screen has much lower noise than the woven vibrating screen mesh or perforated vibrating screen mesh.
A piece of yellow tensioned polyurethane screen with two hooks on the transverse direction.
Tensioned polyurethane screen transverse tensioning.
Three pieces of yellow tensioned polyurethane screens with hooks on the longitudinal direction.
Tensioned polyurethane screens longitudinal tensioning.
Specifications
material: polyurethane material and steel frame.
Thickness: 25mm - 60mm.
Hole type: square, rectangular, round and other types are available.
Hole size: 2.5mm - 130mm.
Panel width: max. 1.5m.
Panel length: max. 3m.
Hook type: metal or polyurethane.
Hook direction: transverse or longitudinal.
Color: red, yellow, blue and any other colors you want.

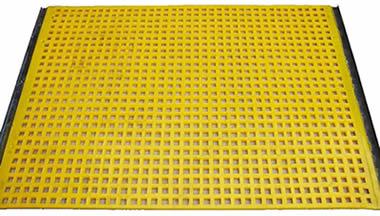

A piece of yellow rectangular tensioned polyurethane screen on the white background.
