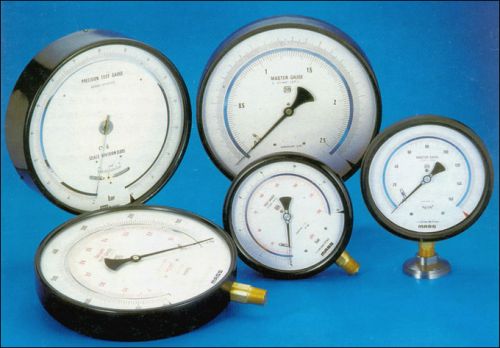

Test and Master Pressure Gauges, Connection : 1/2"NPT(M)/BSP(M)

Get Latest Price

Connection1/2"NPT(M)/BSP(M)
Case & BezelDie cast Aluminium Weatherproof housing, with screwed outer bezel, Stoved enamel black finish. S.S.304 snap action bayonet type.
Element MaterialTest gauge: Phosphor Bronze/SS 316 Master gauge : Beryllium Copper.
JointsSilver brazed / Argon arc welded
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Powertech Industries

MIDC, Mumbai, Maharashtra

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Connection1/2"NPT(M)/BSP(M)
Dial Size150mm & 250mm
MovementPrecision S.S.316, High Precision Jewelled Bearing with Bi-metallic link for Temprature Compensation.
DialAnti Paralax Mirrored Scale.
ElementBellow, bourdon tube
AccuracyTest gauge: +0.5% of f.s.d. Master gauge : 10.25% of f.s.d.
JointsSilver brazed / Argon arc welded
Element MaterialTest gauge: Phosphor Bronze/SS 316 Master gauge : Beryllium Copper.
GlassTinted green or offwhite antislave acrylic type, Toughened or Laminated type.
Least CountAs per standard accuracy chart for + 0.5% and 10.25%
Socket MaterialBrass/AISI 316 SS
MountingDirect with bottom entry / Back with Panel Mounting with clamps
PointerKnife edged, Micrometer zero adjustable type.
Case & BezelDie cast Aluminium Weatherproof housing, with screwed outer bezel, Stoved enamel black finish. S.S.304 snap action bayonet type.
Range0-1000 mmWc to 0 -10,000 mmWc -760 mmHg to 0 0 -1Kg/sq.cm. to 0 -1000 Kg/sq.cm.

MASS make Master Gauges are designed for use as a reference gauge for recalibrating general service gauges, transmitters and other pressure operated instruments.
These gauges are easy to carry for field use and for spot inspections. To make reading easier and faster each pressure gauge is provided with readble dial. Reading error caused by paralax is eliminated by aligning the knife edge tip pointer with its reflection in the mirror band on the gauge.
