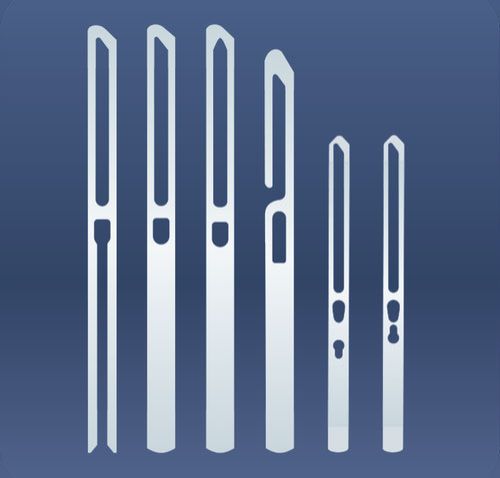

Textile Drop Wires

Drop Wires / Drop Pins Manufacturers

In the process of Weaving Loom, our manufactured range of Drop wires play a vital role. It is a metal device through which a warp yarn is threaded. If in case of warp yarn breaks, that metal device falls and completes an electrical circuit, which stops the loom.

Usually, these drop wires are installed on the weaving loom to detect warp breakage. Offered array of Drop wires is also called a drop pin or dropper in many countries. It is a very crucial part of the shuttle less loom. Also, it shows warp breakage and gives an indication to warp stop motion to stop the weaving machine.

Drop Wires are manufactured in closed and open types for mechanical and electrical warp stop motion. These drop wires are made from hardened and tempered high carbon steel strips / stainless steel 420 J grade magnetic material. The drop wires are deburred to ensure smoothness and polished to minimize yarn frictions.

At our manufacturing unit, our highly qualified engineers manufacture these Drop wires by using top-notch quality of raw materials like Carbon Steel and Stainless Steel. In fact, our company procures these raw materials from reliable vendors so that our clients do not have any chance of complaining and the quality of the fabric can be enhanced without any loss.

Due to their best quality manufactured range of Drop Wires are highly demanded by our national and international clients. Precisely engineered in compliance with the industry set norms and regulations, offered array of drop wires are known for their sturdy construction, high tensile strength, and resistance to corrosion and longer functional life. In addition, our Drop Wires are widely used in imported and domestic rapier loom, air jet loom, and water jet loom.

Some other features are also mentioned here:

• Corrosion-resistance
• Smooth, abrasion resistant surface of eyelet
• Hardness HV410~510
• Longer functional life
• Accurately designed


DROP WIRES

• Mechanical Wrap Stop Motion
• Electrical Warp Stop Motion


EXECUTION

• Stainless Steel (420 J Magnetic)
• Electro Nickel Plating
• Zinc Plating (with Unichrome Blue Finish)
• Golden Yellow Finish


Specification For DropWires

• MO= MECHANICAL OPEN || MC= MECHNICAL CLOSE
• EO= ELECTRICAL OPEN || EC= ELECTRICAL CLOSE
