Textile Inspection Machine, Brand Name : Penglong

₹ 4.53 Lakh / 8000 8000 Set

MOQ1 Set(s)
Brand NamePenglong
Supply abilities30sets per month
CertificationCE
PackageWooden case ,pallet,bubble wrap
Supply TypeManufacturer
Preferred Buyer Location All over the world

Product Details

Brand NamePenglong
Machine TypeInspection winding machine
CertificationCE
Payment TermT/T,L/C at sight,Western Union
Feeding wayVarious options of fabric input & output
Application materialAll kinds of knitted,printed,cotton,tircot and woven fabrcis
Working width2000~3600mm or as per clients requirement
Loading portShanghai,China
High Speed80m/min
Warranty1year
PackageWooden case ,pallet,bubble wrap
FeatureSmall in volume save space
ConditionNEW
Dimensions2150mm(L)*2300mm(W)*2500mm(H)
Supply abilities30sets per month
Delivery Time7-15days
MOQ1set

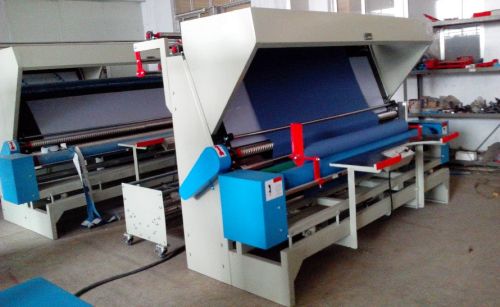

We offer textile inspection and winding machine with cloth cradle.
-usage:
this textile inspection and winding machine with cloth cradle machine is specially designed for inspecting and rolling up all kinds of knitted, printed, cotton, towel cloth, tericot, woven cotton and woven fabrics and so on.
-technical parameters:
1.rang of fabric working width:2000mm-3600mm.
2.diameter of fabric rolls:Ã¢ï¿½Â¤600mm.
3.highest speed:80m/min.
4.power of main motor:1hp*2.
5.edge-aligning tolerance:Ã¢Â±3mm.
6.dimensions: 2500cm(l)*1700cm(w)*1900cm(h) .
feature:
1. Equipped with spiral expanding roller to eliminate curled edge.expanding power 1/2hp.
2.inspecting board is made of milky color acrylic.
3. Auto-edge alignment system consists of edge sensor and hydraulic station made in taiwan is adopted.power 1/2hp.
4.working speed of main motor is managed by two inverters and easy to control by the button on control panel.
5.digital counter could make accurate measurement of length in yards or meters which can be interchanged.
6.winding roller and feeding roller are driven by gear motors,or can add a mobile cloth tank.
7.this machine special designed lopping inspecting board which is near to operator makes it easier to label or mend fabrics.
8. High speed reaches 80m/min.
