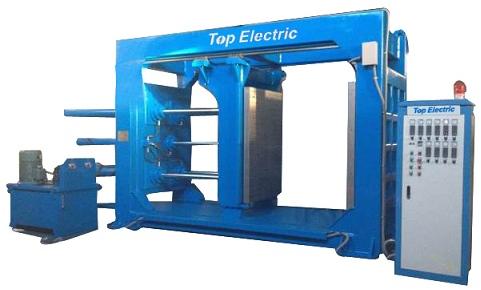

Tez-1214 Model 5-cylinders Synchronous Mould Clamping Machine For 35kv

We are offering tez-1214 model 5-cylinders synchronous mould clamping machine for 35kv.
Epoxy resin automatic pressure gelation(apg) clamping machine is hydraulic complete set equipment adopting apg technology to produce epoxy resin insulation parts, like support insulator, insulating sleeve, current transformer etc. It has functions of moulding, pressure holding, top core pulling, bottom core pulling, side injection, vertical and horizontal axis tilting, heating and automatic pid temperature control etc., suitable to be used for various epoxy resin insulation parts and current transformers production. This apg molding machine adopts whole frame welding structure and annealing process, free accessible from both sides, with fixing surface for heating plates and direct mould heating, premium quality linear motion guides, hanging carriage moving-plates. The complete apg moulding machine is consist of hydraulic system, electric control system, heating system, mechanical system etc. Www.top-electric.cn
1- five cylinders synchrounous clamping machine for large apg mould.
2- this apg molding machine adopt whole frame welding structure and annealing process, high technology performance, rigid machine frame.
3- plate size: 1200mmx1400mm, one-time punching for heater hole which ensure heater installation accuracy
4- adopt premium quality linear motion guides and hanging carriage moving-plates, more reliable clamping, higher accuracy, convenient to operate.
5- hydraulic system adopt high quality pump and motor, also could adopt servo motor for energy-saving, low noise and stable performance; pressure holding through ifm pressure sensor to fulfill stop holding and automatic pressure supply etc. Adopt world famous brand electromagnetic valves, high quality and reliable performance
6- electric control cabinet integrated with mitsiemensdelta plc, manual operations.
