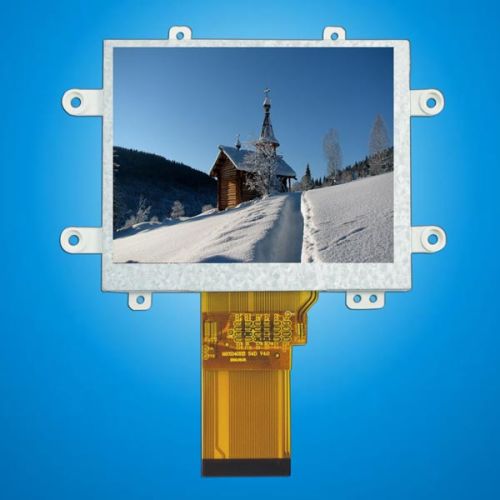

TFT LCD Module

3.5" TFT MEMORYMODULE
- Model No.:SAT-581-BZ035D-AK-N-8012
- System: PALNTSC Automatic
1. INTRODUCTION
SAT-630-TM035D-SO-N TFT module is combined with SAT-630-035-54DS-C PCB board and
SAT035TM54DMR1-A0-01 LCD digital panel, support both PAL system and NTSC ,which can
be automatically converted. The whole module use high light white LED as backlight, which has
low consumption and disturbances. This TFT module can be used for visual doorbell, video
telephony, automotive displays, portable DVD, instruments, meters and measuring equipment
and etc.
2. MAIN PARAMETERS
Resolution
320RGB*240 dot matrix
Valid display area
70.08(W)*52.56(H)(mm)
Color style
R.G.B. Beeline array
Aspect ratio
4:3
Backlight source
LED backlight
Working voltage
DC9V~DC18V(standard:DC12V)
Working voltage(DC12V)
DC120mA±10mA
Signal system
PALNTSC
Scope of input signal
Standard:1.0 Vp-p,Minimum:0.5 Vp-p ,Maximum:2.0 Vp-p
Startup time
�1.8S
Power consumption
