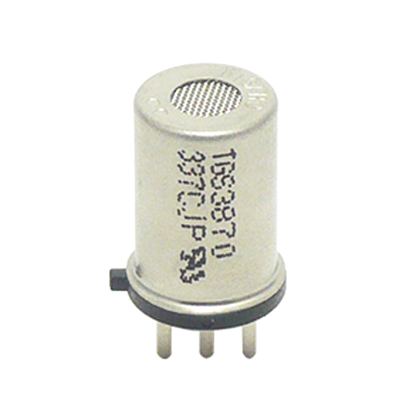

TGS3870-B00 Carbon Monoxide Gas Sensor

Tgs3870-b00 gas sensor for the detection of both methane and carbon monoxide
features:
* miniature size and low power consumption
* high sensitivity and selectivity to both methane and carbon monoxide (co)
* low sensitivity to alcohol vapor
* long life and low cost
applications:
* combination methane and carbon monoxide detectors
tgs3870-b00 is a micro-bead type semiconductor gas sensor for the detection of both methane and carbon monoxide. Using a micro-bead gas sensing structure, both methane and carbon monoxide can be detected with a single sensor element by periodic application of two different heater voltages (high and low). Miniaturization of the gas sensing bead results in a heater power consumption of only 38mw (average).
tgs3870-b00 has low sensitivity to alcohol vapors (a typical interference gas in the residential environment) and has high durability, making the sensor ideal for consumer market gas alarms.
specifications:
target gases: methane, carbon monoxide
typical detection range:
methane - 500-12500 ppm
carbon monoxide- 50-1000ppm
sensing principle: mos type
driving voltages:
heater voltage:vhh = 0.9v(5sec.)
vhl = 0.2v(15sec.)
circuit voltage:5.0v dc pulse
power consumption:
120mw vhh = 0.9v dc
11mw vhl = 0.2v dc
38mw average
dimensions: 9.2 x 13.0mm
weight: approx. 1.1g
