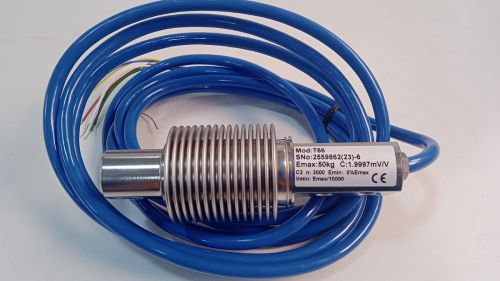

Thames Side T66 - 20KG to 400KG Load Cell

The T66 high precision stainless steel bending beam is a world class load cell and widely used in industrial weighing applications.  It offers extremely high accuracy with OIML approval and can withstand harsh manufacturing environments.

It has OIML approval to 3000 divisions (C3) or 6000 divisions (C6) and ATEX approval for use in hazardous areas where an explosion risk exists.  Its certification for dust zones 20, 21 and 22 does not require the use of safety barriers. The load cell is supplied as standard with a 6-wire configuration (with sense wires).  An optional 4-wire version is available on request (OIML C3 only).

The most common end use industries are Food Processing, Pharmaceutical, Chemical and Bulk Handling, in applications such as high accuracy tank weighing, platform scales, packaging & filling machines, belt scales and mobile conveyors.
