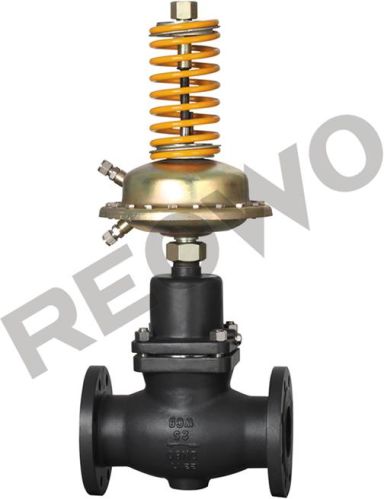

The 30d04y 30d04r Self-operated Differential Pressure Control Valve

We are offering the 30d04y 30d04r self-operated differential pressure control valve.
summary
the30d04y30d04r self-operated differential pressure control valve is composed of the control valve ，actuator and a spring used for pressure setting。
it is suitable for controling differential pressure in the pipes of non-crrosive liquids gases and steams. When the diferential pressure rises, the control valve is opened
the main features are as follows:
1.it has the pressure balancing function with high sensitivity.
2.low noise, reliable performance free of maintenance
3.the standard modular design is adopted.
4.various combined controls can be carried out through the assemblies
body
dn 15、20、25、32、40、50、65、80、100、125、150、200、250mm
pn class150、300
flange standard ansi、jis、din gb jb(special standards can be offered according to user requirements)
body material wcb、cf8、cf3、cf8m、cf3m
plug material hard seal stainless steel (304、316、316l)
soft seal stainless steel embedded with rubber ring
pressure balancing stainless steel bellows (dn15~125), balanced diaphragm (dn150~250)
actuator
effective area (cm2) 80 250 630
pressure setting range 0.1~0.6
0.05~0.3 0.015~0.15
0.01~0.07 0.005~0.035
minimum differential pressure that ensures normal work of the pressure valve ≥0.04 ≥0.01 ≥0.005
allowable maximum differential pressure between the upper a nd lower diaphragm chambers 1.25 0.4 0.15
material diaphragm cover: galvanized steel sheet;
diaphragm: epdm or fkm with fiber
control pipeline connection copper pipe or steel pipe φ10x 1(mm);
ferrule connection: r14"
performance
set value error ±8%
allowable leakage (under stipulated testing conditions) hard seal 4×0.01% valve rated capacity
soft seal dn15~50 dn65-dn125 dn150~250
10 bubbles min 20 bubblesmin 40 bubblesmin
