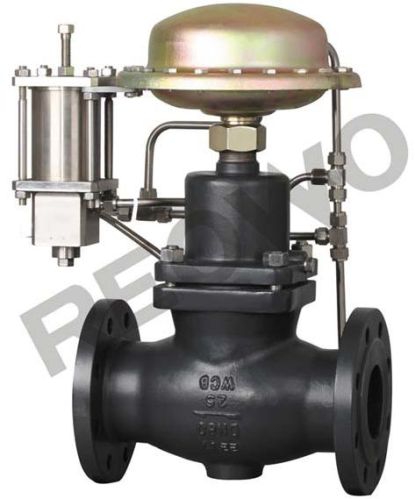

The 30d13y 30d13r Pilot-operated (before Valve) Pressure Control Valve

we are offering The 30d13y 30d13r Pilot-operated (before Valve) Pressure Control Valve.
Summary
The 30D13Y30D13R pilot-operated (before valve) pressure control valve is composed of the
control valve ，pilot and actuator. It is suitable for controling differential pressure in the pipes of
non-crrosive liquids, gases and steams. when the diferential pressure rises, the control valve is
opened The main features are as follows:
1.It has the pressure balancing function with high sensitivity.
2.Low noise, reliable performance, free of maintenance
3.The standard modular design is adopted.
4.High control precision
Body
DN 15、20、25、32、40、50、65、80、100、125、150、200、250mm
PN Class150、300
Flange standard ANSI、JIS、DIN GB JB(special standards can be offered according to user requirements)
Body material WCB、CF8、CF3、CF8M、CF3M
Plug material Hard seal Stainless steel (304、316、316L)
Soft seal Stainless steel embedded with rubber ring
Pressure balancing Stainless steel bellows (DN15~125), balanced diaphragm (DN150~250)
Actuator
Effective area (cm2) 250
Pressure setting range 0.01~0.12 0.08~0.25 0.2~0.5 0.45~1 0.6~2.0
Minimum differential pressure that ensures normal work of the pressure valve DN15~125 is 0.08 DN150~250 is 0.1
Allowable maximum differential pressure between the upper and lower diaphragm chambers 0.4
Material galvanized steel sheet; diaphragm:
EPDM or FKM with fiber
Control pipeline connection Copper pipe o r steel pipe Φ10X 1(mm);
ferrule connect ion: R14"
Note: ※T he pressure setting range corresponding to the effective area does not apply to valves with DN150-250.
Performance
Set value error ±4%
Allowable leakage (under stipulated testing conditions) Hard seal 4×0.01% valve rated capacity
Soft seal DN15~50 DN65-DN125 DN150~250
10 bubbles min 20 bubblesmin 40 bubblesmin
