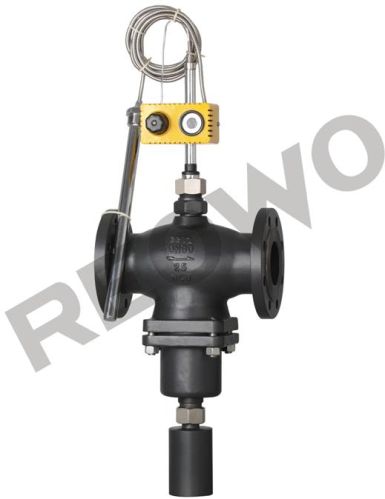

The 30t02y /r Self-operated Temperature (cooling Type) Control Valve

Summary
The 30T02Y30T02R self-operated temperature （cooling type ）control valve is composed of the control valve and a temperature controller provided with fixed point control. It is suitable for controling differential pressure in the pipes of non-crrosive liquids, gases and steams. when the temperature of the controlled mediums rises, the control valve is opened
The main features are as follows:
1.It has the pressure balancing function with high sensitivity.
2.Low noise, reliable performance, free of maintenance
3.The standard modular design is adopted.
4.It adopts the imported fixed point controller, which has the over temperature
protection function with reliable quality.
5.Various combined controls can be carried out through the assemblies.
Body
DN 15、20、25、32、40、50、65、80、100、125、150mm
PN Class150、300
Flange standard ANSI、JIS、DIN GB JB(special standards can be offered according to user requirements)
Body material WCB、CF8、CF3、CF8M、CF3M
Plug material Hard seal Stainless steel (304、316、316L)
Soft seal Stainless steel embedded with rubber ring
Pressure balancing Stainless steel bellows (DN15~125), balanced diaphragm (DN150~250)
Actuator
Actuator mode T06 T17
Temperature setting range(℃) -20~50 20~90 40~110 60~120
Special temperature setting(℃) 110~180 180~250
Temperature protection Exceeding the set value 100℃
Time constant(S) 120 20
Temperature sensor material Nickel-coated copper
Capillary tube length 5、10、15m
Performance
Set value error ±1.5℃
Allowable leakage (under stipulated testing conditions) Hard seal 4×0.01% valve rated capacity
10 bubbles min 20 bubblesmin 40 bubblesmin
