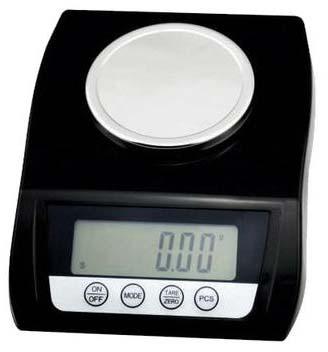

The GSM Scale

The GSM Scale is used for the determination of the weight of yarn, fabric or garment. Our range of weighing scale at B-Tex Engineering is in tandem with international quality norms, offered at market leading prices and is characterized by accuracy and user-friendliness.
GSM scales are used everywhere like in all industry, and are a convenient option for our textile merchants too. The unit is recommended for Yield testing i.e. determination of weight per unit area. For determining the weight per area, a weighing scale having the minimum sensitivity of 0.01 gm is required.
Features of GSM Scale:
A standard laboratory / Industrial grade testing scale model.
Effectively measures GSM of fabric and other products like yarn and garment.
A tool is offered to cut fabric of specific size and if weighed on the scale offered, the reading displayed is the GSM of that fabric.
Gives precise readings.
Has durability and enhanced longevity.
Specifications of GSM Weighing Scale:
The backlight : White.
Units : g, dwt, ct, gn
Automatic power-off : 1 minute
Calibration function; : Yes
Tare (zero) feature : Yes
Low power indicator : LO_
Over load indicator : O_Ld
Power : 2 x AAA batteries
Temperature limits : 0-40° C (32-104°F)
Scale size : 225 x 160 x 40 mm
Platform size : 100 square centimeter in a circular form
Scale Net weight / Gross Weight : 440 g / 580 g
Range : 300g/0.01g
Large LCD : 165 x 25 mm
Power adaptor : 220 V, 9v/100mA
5000 gm capacity x 1 gm accuracy scale in same model is also available with us @ same price.
How GSM Scale works?
Press I/O button to start scale and wait till 0.00 display value.
Press the M (Mode) button to select Weighing units: g, gn, dwt, ct.
Then press T (Tare) button and wait for 0.00 values on screen.
Place the piece of fabric on the pan.
Measure the weight of the fabric.
GSM Scale is confirmed with the standards and comes under warranty. All this help provide customer satisfaction that promotes long
