The Power Panel

ADS-B LYNX NGT-9000
The Power Panel for ADS-B

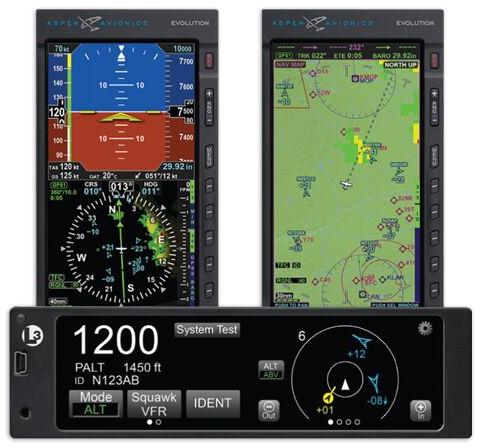

Aspen Evolution Flight Displays and L-3 Lynx® NGT-9000 MultiLink Surveillance System (MSS)
Overview
The pairing of our award-winning Aspen Evolution Flight displays and the advanced L-3 Lynx NGT-9000 dual-band MultiLink Surveillance System provides an easy, cost effective means to increase situational awareness and safety, plus meet the FAA's NextGen ADS-B mandate.
The Lynx NGT-9000 is the world's first touchscreen Mode S ES transponder with an integrated GPSWAAS that is also a display for ADS-B In data, including traffic, NEXRAD graphical and textual weather, and moving maps. When coupled with Aspen’s Evolution Flight displays, this duo delivers a powerful panel of features for ADS-B compliance and much more.
The Lynx NGT-9000 is a Mode S extended squitter transponder with integrated touchscreen display and an internal GPS WAAS that ports ADS-B traffic and weather data to the Aspen Evolution displays through an RS-232 interface. While the Lynx NGT-9000 displays this data on its own touchscreen display, pilots now have several options to arrange data on the larger Aspen primary flight or multi-function display(s) – allowing them to view more information where and when they need it.
Features
Compatible with Aspen Evolution primary flight and multi-function displays
Dual-mode 1090ES ADS-B Out plus 1090 and 978 MHz ADS-B In
Subscription-free ADS-B graphical weather
ADS-B traffic including ADS-R and TIS-B
View traffic from non-ADS-B equipped aircraft with the Lynx NGT-9000+ model and L-3’s embedded NextGen Active Traffic® feature
Patented Lynx Tail provides flight ID and ground speed data of other ADS-B traffic
Internal rule-compliant GPS source (WAASGPS)
Moving maps, including TFRs, airport databases and NOTAMS
Options available for active traffic, antenna diversity and Wi-Fi connectivity to Apple® and Android® tablets
