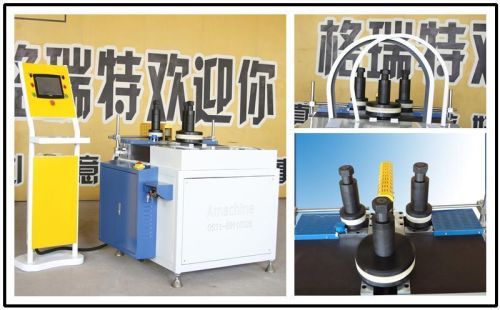

Thermal Break CNC Bending Machine

We are offering thermal break cnc bending machine.
Applications:
this cnc bending machine is to bend the profile into a certain degree shape, so that the thermal break profile can be used for different purposes. Suitable for various aluminum profiles and rectangular steel tube.
Features:
1.equipped with three separate driving rollers, which can avoid sliding during working.
2.the max hydraulic pressure is 13mt, so as to bend profiles easily, and window and door frames as well (rectangular steel tube) .
3.rollers are controlled by cnc system to guarantee accurately(+-0.02mm).
4.distance and position of driving rollers can be adjusted according to requirements.
5.shape bended: “ c” , “u “ , ellipse.
6.self-compensating of rebound value, saving time and money.
7.data can be saved in order to recall next time .
8.controlling methods: automatic or manual .
9.working speed can be changed to meet manufacturing requirements.
10.aluminum with 250mm radius can be bended without causing deformation.
Technical data:
model wyj-cnc-01
minimum bending radius 180mm
diameter of roller 65mm
working mode hydraulic drive
center distance of rollers 260mm
positioning precision of upper roller 0.02mm
max.travel route of upper roller 400mm
maximum width of profile 260mm
power of oil pressure motor 4.5kw
pressure of oil 26t
