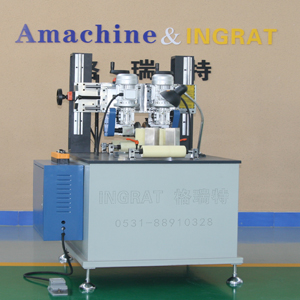

Thermal Break Knurling and Inserting Machine

We are offering thermal break knurling and inserting machine.
Applications:
this knurling and strip feeder machine combines knurling and feeding together for aluminum profiles. Knurling inside the profile grooves where the thermal barrier strip goes through, will increase the friction force between thermal barrier strip and aluminum profiles, so that a good insulation effect can be achieved.
Features:
1.the feeding process is divided into two steps to complete. Compared with a separate feeding machine that feeding once to complete the feeding work, it�s not efficient, but it saves investment money.
2.hand wheels are equipped in case the two strips are of different shapes (length, height).
3.film coating device can be installed, so that knurling, strip feeding and film coating can be achieved at the same time .
Technical data:
model kcj-01
power supply 380v50hz
total power 1.28kw
gear diameter 120mm
adjusting range for teeth maker 110mm max horizontal distance
feeding speed 0-60mmin
max knurled profiles size w*h=200mm*170mm
knurling width 6mm-110mm (minmax)
overall dimension l*w*h=1000mm*1100mm*1450mm
weight 600kg
packaging wooden box
