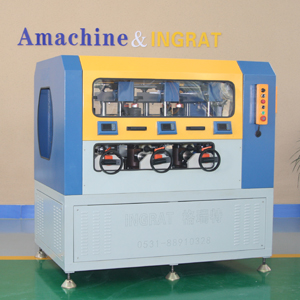

Thermal Break Rolling Compound Machine

We are offering thermal break rolling compound machine.
Applications:
this aluminum profile rolling machine is to combine thermal barrier strip or plastic profile with aluminum profiles to make the end product, which is called bridge-cut-off aluminum alloy profile or thermal break aluminum profile. Hardened rollers are used to press the knurled profile and thermal barrier strip or plastic profile together, to make a composite profile that has great insulation effect.
Features:
1.equipped with three groups of hardened rollers electrically controlled, available in changing profiles quickly with the nylon rollers. Two-axis direction adjustments.
2.six rollers controlled by separate driving force guarantee stable rolling, higher speed, and higher efficiency
3.space between roller wheelings adjustable. Suitable for various sizes of thermal barrier strips.
4.frequency converter with stepless speed regulation.
5.high-precision screw are used for driving.
technical data:
model gyj-01
power supply 380v50hz
total power 4.73kw
roller diameter 240mm
the whole height of three sets of roller 0-80mm
max processing size of profile w*h=230mm*230mm
feeding speed 0-60mmin
overall dimension l*w*h=1800mm*1050mm*1600mm
weight 1500kg
packaging wooden box
