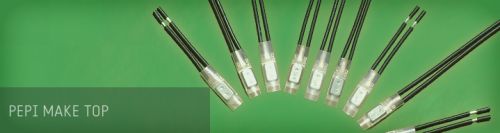

Thermal Overload Protectors

PEPI make Snap Action Thermal Overload Protectors are cost effective solution for protection. Available with various bimetallic elements to match the current sensitivity of the device.

Features:

• Conductive bimetal construction; the bimetallic element carries the circuit current for maximum sensitivity under short circuit conditions.
• Snap action device; quick make break switching action.
• Temperature differential between opening temperature is ±5°C
• Temperature differential between closing temperature is 30°C: ±15°C(tolerence) depending upon the no-load calibration temperature.
• Metal case is electrically alive; insulating sleeving is available.
• Preset calibration temperature; not adjustable in the field.
• Customized lead lengths and configuration are available.

Main application:

• Shaded Pole Motor
• Control Transformers
• Electronic Ballasts
• Solonoids
• Printed Circuit Boards
