Thermal Printer

CNY 530 / 570 570 Set

MOQ1 Set(s)
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

we are offering EPON M-T532 thermal Printer with auto cutter with the Control board. ITEM JTW-530 Print Method Thermal Line Dot per Line ....

Company Information

Member Since 11 Years
Nature of Business Manufacturer
Year of Establishment 2005

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

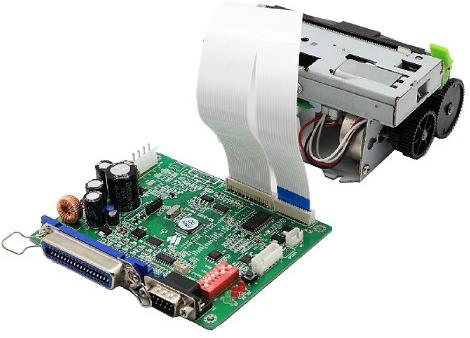

we are offering EPON M-T532 thermal Printer with auto cutter with the Control board.
ITEM JTW-530
Print Method Thermal Line
Dot per Line 432 dotsline,448 dotsline,
576 dotsline, 640 dotsline
Resolution 8 dotsmm
Effective paper width 80mm
Paper Feed Pitch 0.125 mm
Print Speed 150 mmsec
Paper Width 80 mm
Paper Thickness 56 to 150um
Paper Loading Method Drop-in easy loading
Font 12× 24 dots, 9× 17 dots
Interface RS232serial, Parallel, USB
Power 24V, 2.5A
Dimension
(W×D×H)Printer mechanis126.0 x 91.9 x 57.5 mm
Control board 120.0 x 95 x28 mm
Weight 550g
Life Span Print head 150 km or more
Auto-cutter 1,000,000 cuts
Rubber roller 5,000 times (turn onoff)
Operating
Environment Operating Temperature -15°C~ 70°C
Operating Humidity 10 ~ 80% RH
Storage Temperature -25° C~70° C
Storage Humidity 10 ~90% RH
Detection Head Temperature
Detection Via thermistor
Paper outMark
Detection
Via photo interrupter
Platen release Via sliding switch
Movable blade Via photo interrupter
Accessories Standard Power supply
Optional SerialParallelUSB cable
