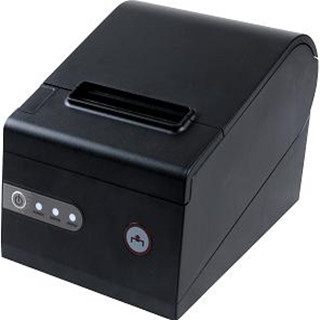

Contact SupplierWe are offering thermal receipt printer. Printing method: direct thermal
print font: ank, 12 x 24 dots (font a) and 9 x 17 dots (font b)
resolution: 72/576 or 64mm/512 dots
character size ank:
font a: 1.5 x 3.0mm (12 x 24 dots)
font b: 1.1 x 2.1mm (9 x 17 dots)
chinese: 3.0 x 3.0mm (24 x 24 dots)
language: customized
printing speed: 230mm/s
nv logo download: supported
receive buffer: 32kb
nv flash buffer: 60kb
paper width: 79.5, ±0.5mm
mcbf(life): 100km
dimension: 200 x 145 x 137mm
gross weight: 3.0kg
auto cutter: supported (full or partial)
paper end sensor: supported
beeper: supported
paper thickness: 0.06 to 0.2mm
roll paper: 79.5, ±0.5 x 83mm
cash drawer control: 12 to 24v dc/1a
power supply: 24v dc/2.5a
power adapter:
input voltage/frequency: 110v ac or 220v/50 to 60hz
output voltage/current: 24v dc/2.5a
drivers: microsoft windows 9x, me, 2000, 2003, nt, xp, vista and 7
barcode: jupc-a, upc-e, jan13(ean13), jan8(ean8), codabar, itf, code39, code93 and code128
storage environment:
temperature: -10 to 60°c
humidity: 10 to 90%
working environment:
temperature: 0 to 45°c
humidity: 10 to 80%
command: compatible with esc/pos
interface (option): rs232c, parallel, usb.
