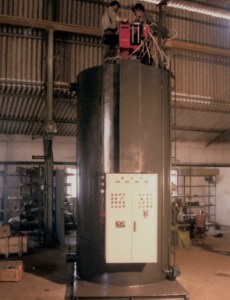

Thermic Fluid Heater

Thermic Fluid Heater

Listing ID #4212182

Get Latest Price
  • Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer From : All over the world

SALIENT FEATURES • Low intial & operational cost. • Beyond perview of IBR • Quick start up and stopage • No explosion Hazard • System piping is NON IBR & Low pressure so less....
View More Details
Send Enquiry

Company Information

IMA Boilers Private Limited
Mulund, Mumbai, Maharashtra
View Number
  • Member Since 6 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

SALIENT FEATURES
• Low intial & operational cost.
• Beyond perview of IBR
• Quick start up and stopage
• No explosion Hazard
• System piping is NON IBR & Low pressure so less expensive
• Higher thermal Efficiency 4 pass design
• Dependable parts, longer life
• Easy trouble free operation
• Smokeless combustion
• Wide temp. setting range
• Available in Horizontal/Vertical versions



CONTROLS
• Electrical control pannel box mounted on the boiler cell consists of contactors, relays and cut outs for blower, circulating pump and fuel pump. Burner programmer prepurging timer, ignition transformer, indicating lamps, temperature controler, pressure gauges, low flow Diff. pressure switche, control switches and power ON/OFF main switch



SAFETY
• Boiler shuts down giving an audio visio alarm in the event of low liquid lflow , high outlet temperature, low liquid level, erratic flame or flame failure.Dead wt.safety damper for venting off pressure build up inside combustion chamber.



BURNER
• Fully automatic down /side fire forced draught pressure jet ON/OFF /High Low control with audio visual alarm device in the event of flame failure or safety lockout.



Model - IF

IF200

IF400

IF600

IF1000

IF1500

IF2000

Heat output Kcal/hr in lakhs

2

4

6

10

15

20

Max. outlet Temp. deg cent

300

300

300

300

300

300

Thermal Eff. On NCV

89%

89%

89%

89%

89%

89%

Fuel Cons. LDO/FO kg/hr

22

44

66

112

160

210

Ele. Load LDO/FO kw

5.5/8.5

7.5/11.5

17.0

25.0

35

41

Dry WT. Kgs

1200

1500

2500

3500

5000

7500

Dimension (mm)       Length

1000

1200

2500

3500

5200

5500

                                  Width

700

800

1000

1500

2000

2400

                                  Height

1500

1800

1200

1500

2000

2400

Company Details close-icon

* Company Name : IMA Boilers Pvt. Ltd.
* Factory : At Plot No.: 80, Shahpur Industrial Estate, Pundhe Village,
Mumbai-Nasik Road, Shahpur,Dist-Thane-421 601, INDIA.
* Office : 9/I, Meghal Industrial Estate, Devidayal Road, Mulund(West), Mumbai: 400 080. INDIA
* Contact Person : Mr.R.J.Jadeja
* Telephone : +91-22-25602369
* Tele-Fax : +91-22-25683220
* E-mail : info@imaboilers.com
* Promoters : Mr. Jadeja, A mechanical Engineer with over 30 years field specialization assisted by team of experienced Engineers looks after designs, manufacturing, quality control & after sales services.
* Infrastructure : Design & Drawings are done On AutoCAD R14
Shop floor Area : 7000 Sq.Ft.
Electrical Power : 40 Hp
Lifting arrangements: 10MT. at 20 feet height covering 6000Sq.ft.of shop floor
Coiling facility :Upto 2000mm dia x 4000mm long
Testing/Measuring :Facility for hydraulic test,Destructive tests plus all welding and M/c shop & testing equipments. Radiographic test is being done by the specialists. Fully equipped test bed for test firing the Boilers.
* Quality Control :Weld joints done by welders Certified by IBR.All components Bought out and Vender made are Inspected and tested and assembled by specialists. Controlls,Safeties and switchgears are wired by the experts and complete assembly is thoroughly inspected and test fired before dispatch.
*After Sales Service :Team of experienced Engineers equipped with Mobile telephones guided by the M.D. is providing truly tried and tested service to our equipment users including spare parts. On request we do carry out periodical services on yearly Service Contracts.
