Thermic Fluid Heater, Automatic Grade : Automatic

₹ 4 Lakh - ₹ 2 Cr / Piece

Number Of FlowerThermic Fluid Heater
Highest EfficiencyCombustion Chamber Dimension And Grate Area Suitably Designed For Maximum Combustion Efficiency On Low Grade Fuel.
Safety FeaturesExternal Combustion Chamber Ensures Longer Life Of Heater Coil And Thermic Fluid. No Radiation Energy Transferred To Heater Coil In Case Of Power Failure Ensuring Complete Safety.
Multifuel ConceptGuaranteed Output On Low Grade Coal And Lignite With GCV Upto 3800 Kcal/Kg. Agricultural Wastes Such As Rice Husk, Bagasse, Groundnut Shell, Saw Dust Etc.
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

4.0/5

Member Since 8 Years
Nature of Business Retailer
GST No. 09AASPN7952N1ZK

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerThermic Fluid Heater
Multifuel ConceptGuaranteed Output On Low Grade Coal And Lignite With GCV Upto 3800 Kcal/Kg. Agricultural Wastes Such As Rice Husk, Bagasse, Groundnut Shell, Saw Dust Etc.
Highest EfficiencyCombustion Chamber Dimension And Grate Area Suitably Designed For Maximum Combustion Efficiency On Low Grade Fuel.
Optional FeaturesCoal Cum Oil Firing System, Automatic By-pass Damper, Modulating Damper Or Variable Speed Drive To Control Combustion.
Safety FeaturesExternal Combustion Chamber Ensures Longer Life Of Heater Coil And Thermic Fluid. No Radiation Energy Transferred To Heater Coil In Case Of Power Failure Ensuring Complete Safety.
Low Power ConsumptionUnique Design Ensures Lowest Power Consumption Over Any Other Competing System Available Today.

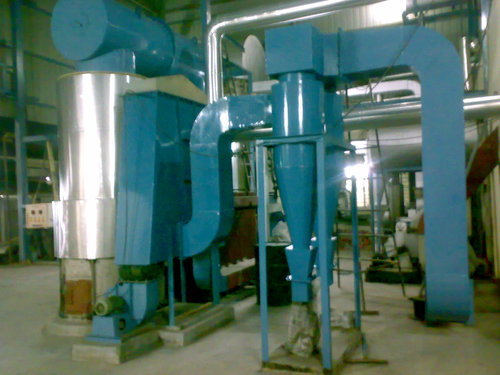

Thermic Fluid Heater

Multifuel Concept :

Guaranted output on low grade coal and lignite with GCV upto 3800 Kcal/Kg. Agricultural Wastes such as rice Husk, Bagasse, Groundnut shell, Saw Dust etc.

Highest Efficiency :

The combustion chamber dimension and grate area are suitably designed for maximum combustion efficiency on low grade fuel. This system is easily accessible and large heating surface of Thermo Energy Systems heater and air pre-heater assures on unmatched efficiency f76%(on GCV of coal having 5000kcal/Kg.)

Low Power Consumption:

Unique design of Thermo Energy Systems heater ensures lowest power consumption over any other competing system available today.

Availability: Against Order

Product Description

Details

Absolute Safety: External Combustion chamber ensures longer life of heater coil and thermic fluid. No radiation energy is transferred to heater coil in case of power failure ensuring complete safety. Diesel engine driven pump is not required for Fluid tech heater as compared to vertical systems.

External Furnace: Coal/Lignite is burnt in an external furnace which results in an elimination of any possible hazard to the thermic fluid heater coil. A flue by-pass system is attached for the protection against power failure. The entire furnace is provided with steel casing and the combustion chamber is constructed with best quality high heat duty fire bricks and insulation bricks. Mineral wool insulating panels help minimum heat loss.

Safety Controles and Instrumentation :

Digital Electronic indicator cum controller forward/return temperature for ID fan off.
Electronic stack temperature controller shuts of the unit in case of abnormally low temperature.
Electronic low level controller in expansion cum deareated tank shuts off the unit in case of low thermic fluid level in tank.
Electronic forward high temperature safety controllers shuts off the unit case forward temperature exceeds than minimum recommended temperature.
Differential pressure switch shuts off in case of abnormal fluid flow conditions.
Pressure gauge for inlet pressure measurement.
Pressure gauge for circuit pressure measurement.
Audio visual alarm for abnormal operating conditions.

Optional Features :

Coal cum oil firing system to change over from one fuel to another with minimum down time.
Automatic by-pass damper with electromagnetic or pneumatic device.
Modulating damper or variable speed drive to control combustion under all operating conditions.
