Contact SupplierWe are offering thermistor
measurement ntc thermistor.
1. glass encapsulated ntc thermistor
2. for temperature test and control
3. glass sealed type
4. diode ntc thermistor
5. high precision, radial

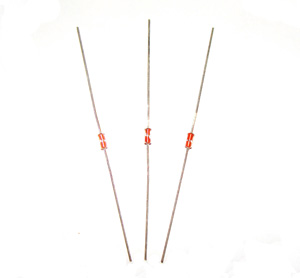

mf58 glass shell temp measurement ntc thermistor is made by the combinative technique of porcelain and semiconductor, and adopt glass encapsulation frame at two ends in the direction of spindle.
part number
mf58 502 f 3380
mf58 —> type: glass shell temp measurement ntc thermistor
502 —> rated resistance 502 namely 5k ohm 50*102 ohm
f —> the allowable tolerance of resistance f is +/-1%, g is +/-2%, h is +/-3%, j is +/-5%, k is +/-10%
3380 —> b value: 3380 namely 3380k
main tech-parameter
1. the range of resistance under the rated zero power (r25): 0.1~1000k ohm
2. the allowable tolerance of r25: +/-1%, +/-2%, +/-3%, +/-5%, +/-10%
3. the range of b value ( b25/50°c): 3100~4500k
4. the allowable tolerance of b value: +/-0.5%, +/-1%, +/-2%
5. dissipation factor: >=2mw/°c ( in still air )
6. thermal time constant:
