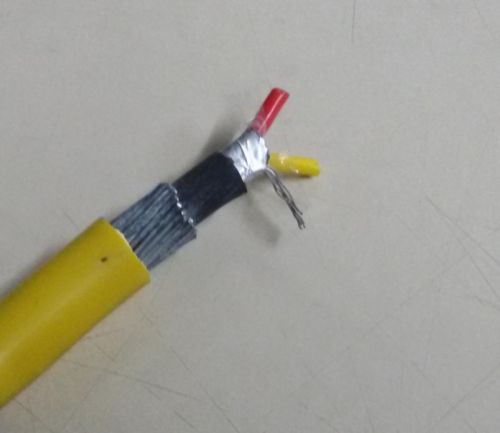

TECHNOFLEX PVC Thermocouple Cables For TEMPRATURE

₹ 110 - ₹ 130 / mtr

MaterialPVC
Material GradePVC Insulated & PVC Sheathed
Length500 mtr
Conductor TypeCopper Constant
Supply TypeManufacturer, Trader
Preferred Buyer Location All over the world

Company Information

5.0/5

Member Since 12 Years
Nature of Business Retailer
GST No. 27AAIFN4328C1ZG

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerThermocouple Cables
MaterialPVC
Length500 mtr
FeatureQuality Tested
Power SourceTemperature
Conductor TypeCopper Constant
Tenmperature100-200 Deg C
Brand NameTECHNOFLEX
Country of OriginIndia
Size1.5 SQ.MM
ApplicationTEMPRATURE
TheorySHIELDED
Conductor MaterialCopper Constant
Accuracy+/- 10%
Configuration1P x 16 awg K-type Compensating Grade Shielded Thermocouple Armored Cable
Material GradePVC Insulated & PVC Sheathed
Temperature70 Deg. C.
Number Of Core2 Core OR 1 Pair
Cable CodeKX, KX(A), TX, JX, EX, SX /RX, BX, NX, UX, WX
Inner SheathPVC/ HR/ FR PVC / FRLS PVC / ZHFR / LSF / PTFE / Fibre Glass / ZHFR.
Outer sheathPVC/HR PVC/FR PVC/FRLS / ZHFR / LSF / PTFE / Fibre Glass / ZFHR.
Range16 AWG / 18 AWG / 20 AWG / 20 AWG upto 20 Pair
Rip cordFor easy removal of sheath.
StandardsANSI:MC-96.1, IS-8784, DIN, BS, IEC 584-3 AND IEC-60332
ConstructionSingle or Multiple Pairs
ArmouringGL round Wire / Flat strip
Voltage GradeUpto 1100 V
PrimaryInsulationGeneral purpose PVC / HEAT RESISTANT PVC / LDPE / XLPE / PTFE / Fibre Glass / XLPE
ScreeningIndividual and / or overall with Aluminium Mylar / Copper Tape or with Tinned, Bare, Nickel Copper / Stainless Steel

A wide range of efficient Thermocouple Compensating Cables is being offered by us for meeting various industrial requirements. These cables are also known as a perfect alternative to Thermocouple Extension Cables due to their availability at competitive prices. Thermocouple cables being offered by us are manufactured using different alloys of superior quality. These cables are widely brought into application by steel, cement and glass industries. Cables offered by us are manufactured in accordance to standards of IS: 8784, ANSI MC: 96.1to be accepted globally.

Thermocouple Cables

Techno Flex make Compensetting thermocouple cables which is a economical alternative as compare to the Thermocouple Extension cable where single / multipair conductor utilizing dissimilar metallic Conductors than that of the thermocouple but having similar e.m.f temperature characteristics Over a limited range. Our large gamut of Thermocouple Extension Cables is available in varied dimensions to meet the different needs of the clients. Thermocouple Extension Cables are widely used to extend thermocouple circuits from the sensor to reference unit, conforming to IS: 8784, BS: 4937, IEC-584, ANSI: MC: 96.1, DIN, JIS standards.
